GN473 3D CAD Model

GN473 Foot Clamp Mounting, Aluminium

Close Next Previous

Close Next Previous

GN473: Foot Clamp Mounting
Finish: MT - Matt, Ground

Close Next Previous

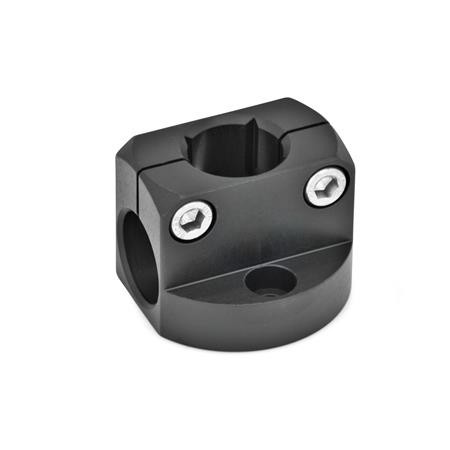

GN473: Foot Clamp Mounting
Finish: ELS - Anodized Black

Choose your Part

Please select desired options to reveal part number, price and availability

Product Description

GN473 Foot Clamp Mounting, Aluminium

These foot clamping mounts, GN 743, have a horizontal and a vertical clamp bore, and the vertical clamp bore is additionally fitted with a square.

The bore distance m of these foot clamp mountings is matched with clamp mountings GN477 and flanged bolts GN480, as well as retaining magnets GN51.6. The standard clamping bolts are socket cap screws DIN912. They can be replaced by clamping kits GN511.

Specification

Aluminium

Matt, ground MT.

Anodized, black ELS.

Socket cap screws DIN912 - Stainless Steel AISI 304

Accessory

Adjustable clamping lever GN511

Related Series


GN162
Base Plate Connector Clamp, Aluminium, 4 Hole Mount

GN477
Clamp Mounting, Aluminium, Unthreaded

GN480.1-Retaining_Rod___Retaining_Tube__Round_for_Clamp_Mounting__Stainless_Steel.png

GN480.1
Retaining Rod Tube Round Stainless Steel for Clamp Mounts


GN51.6
Retaining Magnet, Disc, 2 Internal Threads, Rubber Jacket

GN965
Assembly Set, for Profile Systems 30 or 40, for Slot Width 6 or 8

GN968
Assembly Set, for Profile Systems 30, 40 or 45


GN480.1
Retaining Square Tube, Aluminium, for Clamp Mountings


GN511
Clamping Kit, Zinc Die Cast Stainless Steel, Adjustable
