Please select desired options to reveal part number, price and availability
Options

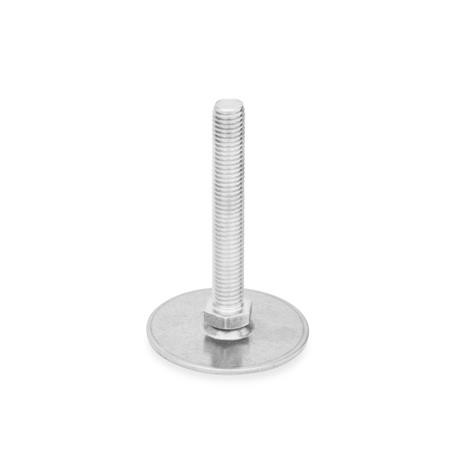

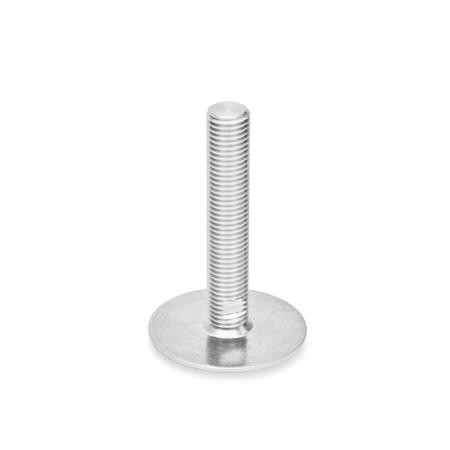

Type D0 - without rubber underlay

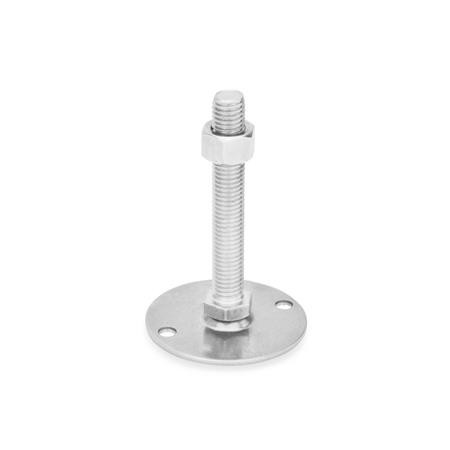

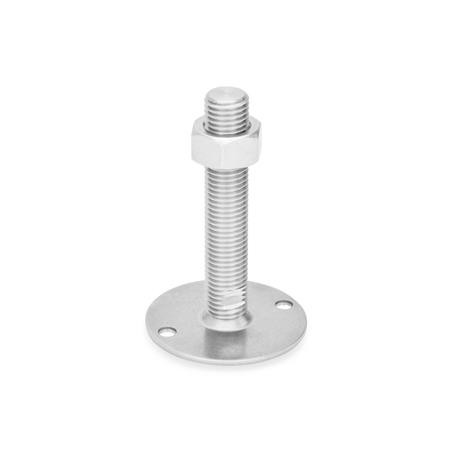

Type B0 - without rubber underlay, with 2 fixing holes

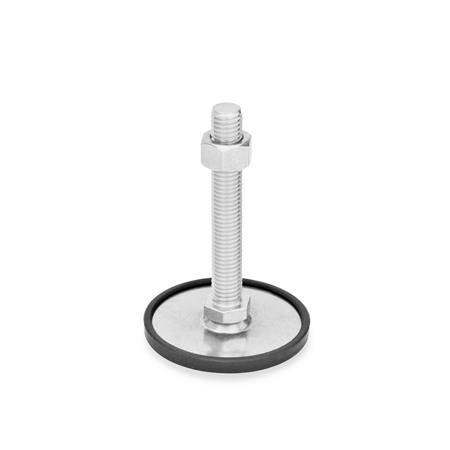

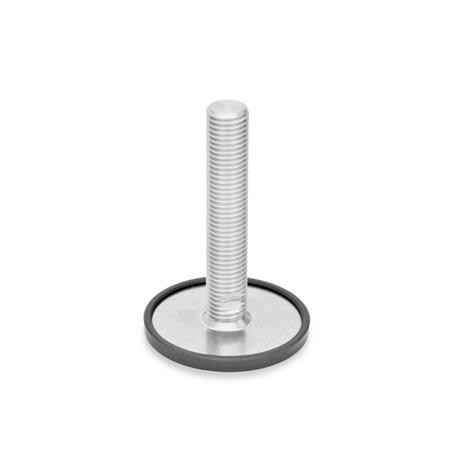

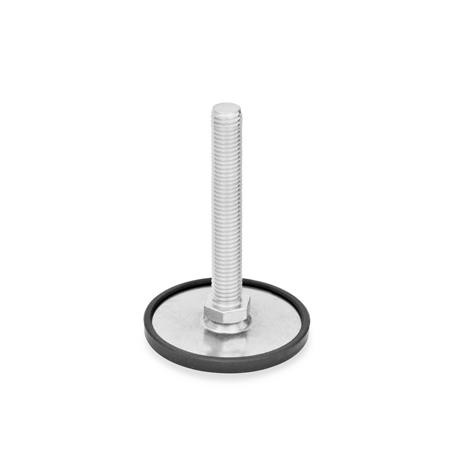

Type D1 - with rubber underlay, clipped on, black

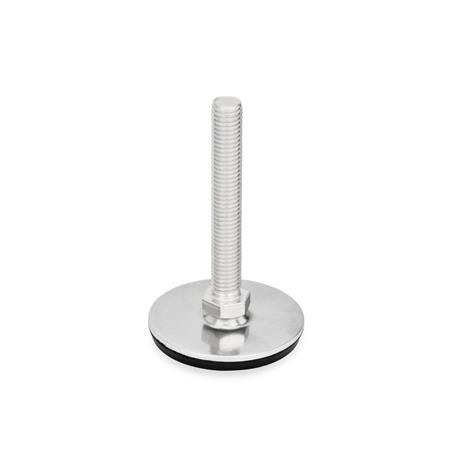

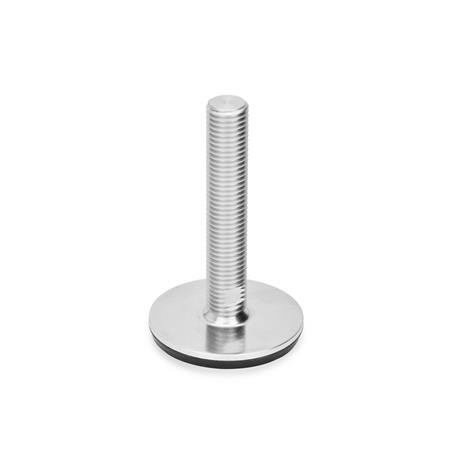

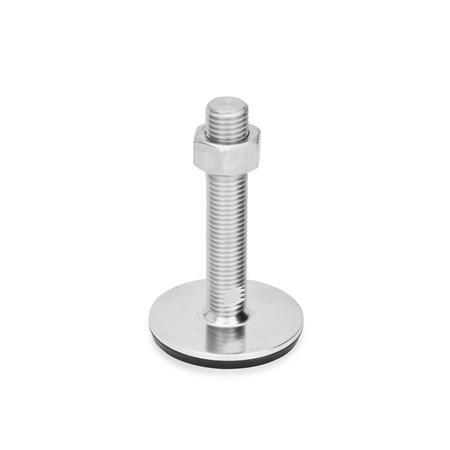

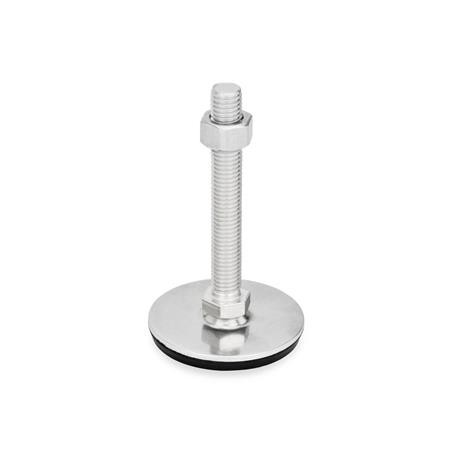

Type D3 - with rubber underlay, vulcanized, black
Version S - without nut, external hexagon at the bottom

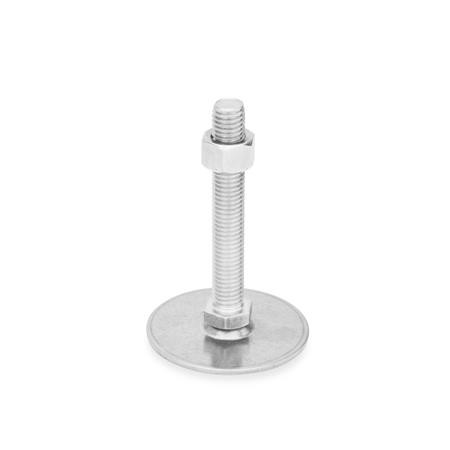

Version SK - with nut, external hexagon at the bottom
Version T - without nut, wrench flat at the bottom

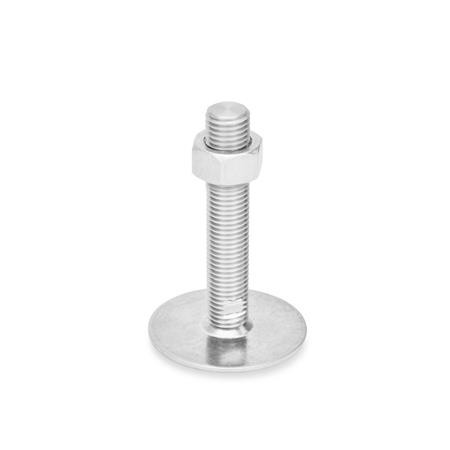

Version TK - with nut, wrench flat at the bottom
Product Description
GN44 Levelling Feet, Stainless Steel, A4
GN 44 stainless steel levelling feet are ideal for use in aggressive environments. The range of combinations of base plates and adjustable spindle versions allows these levelling feet to be used in every situation.
The base plate with the rubber underlay protects sensitive surfaces and reduces lateral slippage. The type B0 can also be fastened to the mounting surface through two holes.
The levelling feet are supplied fully assembled and are not removable.
Specification
Base plate - Stainless Steel, AISI 316 L (A4), blank, ground
Threaded stem - Stainless Steel AISI 316 L (A4)
Hexagon nut ISO 4032 - Stainless Steel, A4
Rubber cap - clipped on, black, Santoprene® (TPE) ≈ 80 Shore A
Rubber underlay - vulcanized, black, Perbunan® (NBR), 70±5 Shore A
CAD Viewer
Technical Data
