Type A - Protruded plunger locked, without lock nut

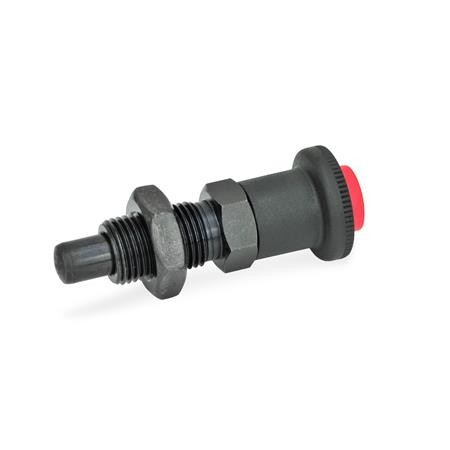

Type AK - Protruded plunger locked, with lock nut
Product Description
GN414 Indexing Plunger, Safety Push Button Lock, Steel
Safety indexing plungers, GN 414, are used when the inadvertent movement of the plunger pin is to be prevented.
The plunger pin is locked in one or both end positions and can be unlocked only with the red safety push button. The push button must be moved in the axial direction.
Locking is automatic once the end position is reached.
The locking mechanism is fully integrated in the operating button, malfunctions caused by dirt or foreign bodies are therefore ruled out.
The specified axial load bearing capacity refers to the locking force of the bolt against inadvertent operation which must not be exceeded.
Specification
Steel ST - Blackened, plunger pin hardened
Knob - Plastic Technopolymer (Polyamide PA) - black matt finish, not removable, black-grey, RAL 7021, matt
Safety push-button - Technopolymer (Polyacetal POM), red, RAL 3000, matt
