GN343.4
Levelling Foot, Plastic, Threaded Steel Stud, Anti Slip
Please select desired options to reveal part number, price and availability
Options
Type A - Without nut, without rubber underlay
Type B - With nut, without rubber underlay

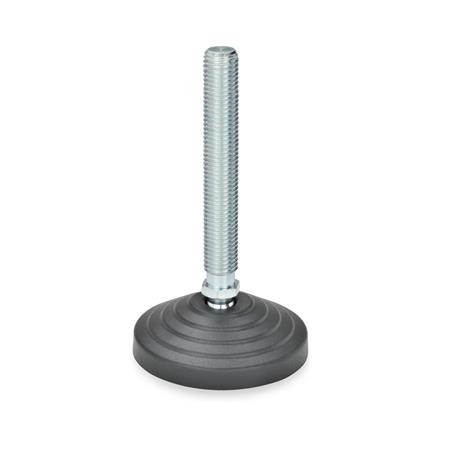

Type AG - Without nut, with rubber underlay
Type BG - With nut, with rubber underlay
Product Description
GN344 Threaded Steel Stud, Plastic Stepped Base, Optional Nut
These levelling feet, GN 344, have a slightly stepped base which gives them an attractive, easy to clean shape. They stabilise machinery & reduce noise & vibration.
They have a high load-bearing capacity which is achieved by the use of a very high grade, high denisty plastic material. In addition their stepped base also helps to spread the load over a wider area.
The levelling feet are supplied assembled, but can be disassembled if required.
Specification
The values given in the table regarding the static load capacity serve as a guide line only and if these are exceeded serious permanent deformation or breakage of the plastic socket could occur. The above values have been arrived at by a series of tests whereby a limited number of levelling feet were subjected for a limited time to a vertical static load to the feet.The details relating to the load bearing capacity are non-binding recommended values and rule out any liability. They constitute no general warranty of quality and condition. The user must determine from case to case whether a product is suitable for the intended use.
