GN638
Ball Jointed Levelling Foot, Stainless Steel, Plastic Pad
Please select desired options to reveal part number, price and availability
Options
Type OS - Without plastic cap

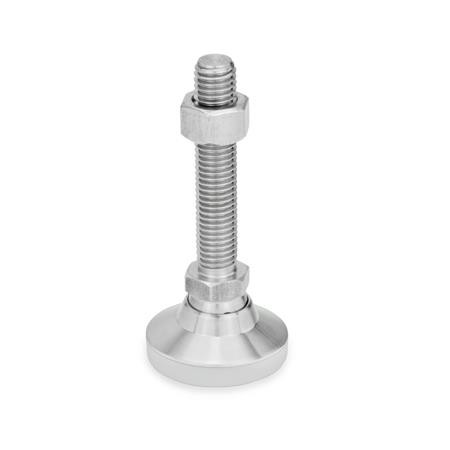

Type KS - With plastic cap, gliding
Type KR - With plastic cap, non gliding
Type KSE - With plastic cap, gliding, electrically conductive (antistatic)

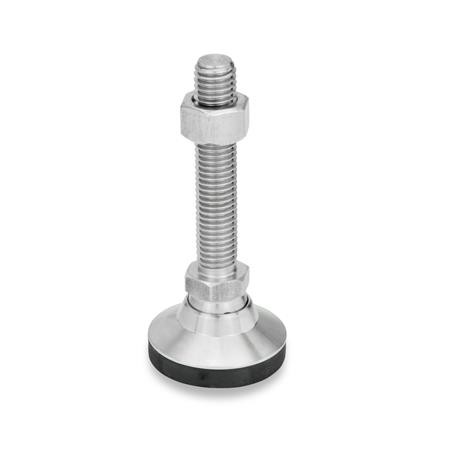

Type KRE - With plastic cap, non-gliding, electrically conductive (antistatic)
Product Description
GN343.6 Levelling Foot, Stainless Steel, with Threaded Stud
The static load of the levelling feet GN 343.6 is limited by the load capacity of the stainless steel ball joint with threaded stud (AISI 303). The static load values in the below table refer to a net vertical load in relation to the ball socket. Under normal operating conditions side loading or angular loading is not uncommon and the load capacity would be considerably reduced which must be taken into consideration.
Levelling feet GN343.6 cannot be disassembled.
Specification
Stainless Steel NI, AISI 303 fine turned
Type KS/KSE - Plastic cap, Polyacetal (POM), KS: white (natural color) RAL 9001. KSE: black, electrically conductive, surface resistivity < 106Ω Volume resistivity < 107Ω DIN EN 61340-5-1 / 61340-2-3
Type KR/KRE - Plastic cap, Elastomer (TPE), 78 shore A ≈, KR: black. KRE: black, electrically conductive, surface resistivity < 106Ω, volume resistivity < 107Ω DIN EN 61340-5-1 / 61340-2-3
Hexagon nut ISO4032 - Stainless Steel NI, AISI 304
