GN300.5
Adjustable Hand Lever, All Stainless Steel, Male
Christmas Closure - We are currently closed for Christmas you can still place orders but they will not be processed until the New Year. We are back on Thursday 2nd January.
Christmas Closure - We are currently closed for Christmas you can still place orders but they will not be processed until the New Year. We are back on Thursday 2nd January.
Please select desired options to reveal part number, price and availability
Product Description
GN302 Adjustable Hand Lever, Straight Handle
These adjustable hand levers, GN 302, have a straight lever, which is not inclined at an angle and is instead parallel to the clamping space. For some applications this is an advantage either due to limited space or for visual reasons.
These levers are ideal whenever parts have to be clamped in a confined space or in a particular lever position. The centre insert is connected to the lever via serrations which can easily be disengaged.
Pulling the lever disengages the serrations and allows it to be swivelled to the ideal clamping position. On releasing the lever the serrations automatically re-engage.
Specification
Handle - Zinc die casting, plastic coated.

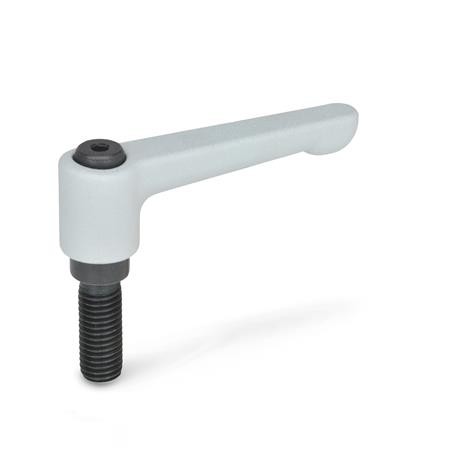

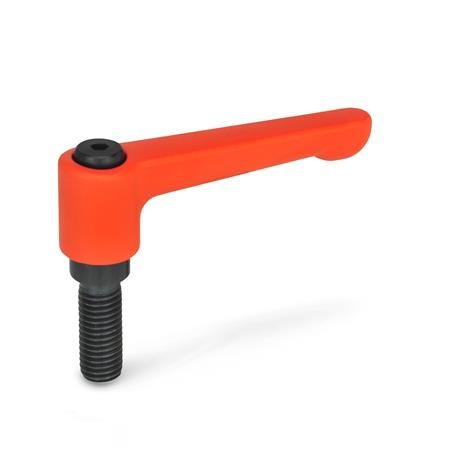

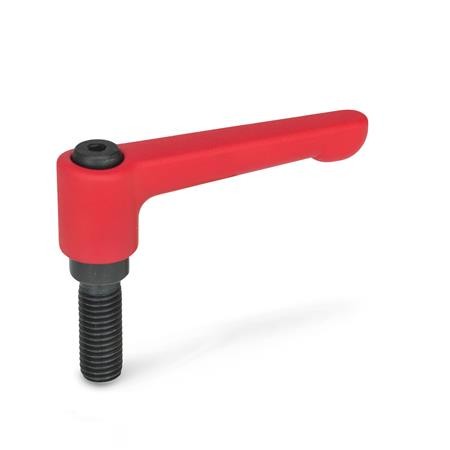

Black, SW RAL 9005, textured finish. Orange, OS RAL 2004, textured finish. Red, RS, RAL 3000, textured finish. Silver, SR RAL 9006, textured finish.
Thread stud and screw - Steel, blackened.
