GN292

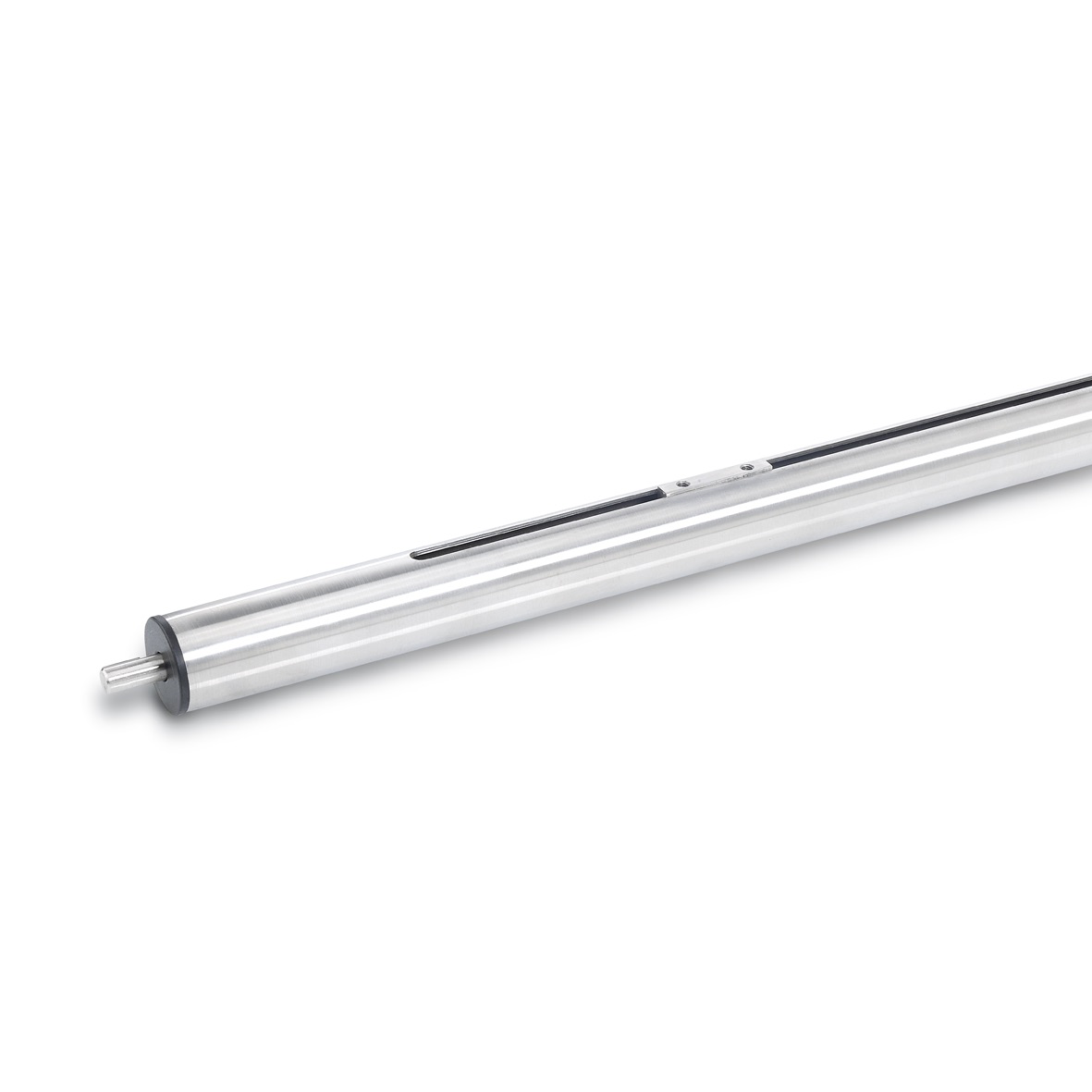

Linear Actuator, Steel or Stainless, Right or Left Hand Thread
Please select desired options to reveal part number, price and availability
Options
Type R1 - Right Hand Thread Single End
Type R2* - Right Hand Thread Double Ended
Type L1 - Left Hand Thread Single End
Type L2* - Left Hand Thread Double Ended
Product Description
GN291 Linear Actuator, Steel, Stainless Steel, Right or Left Hand Thread
In addition to the standard travel lengths specified in the table attached, any length within the range is available upon request.
Besides the extensive range of tube clamp connectors there are a number of different components for fixing the linear actuators and to build linear actuator connectors.
In order to measure the displacement and positioning of the linear actuator connectors, digital as well as analogue position indicators can be installed and furthermore the guide tube can be provided with a longitudinal scale.
Specification
Guide tube - Tube DIN2391, Steel ST, chrome-plated SCR. Tube DIN2462. Stainless Steel* NI AISI 304
Spindle with trapezoidal thread - Steel respectively, Stainless Steel AISI 303. Ball bearing
Lead nut - Gunmetal
End cap - Plastic
*Please note - usually not availble from stock, and requires a minimum order quantity.
Accessory
Linear actuator connectors, tube clamp connectors and accessory have to be ordered separately.
