GN276
Swivel Clamp Connector, Aluminium
Christmas Closure - We are currently closed for Christmas you can still place orders but they will not be processed until the New Year. We are back on Thursday 2nd January.
Christmas Closure - We are currently closed for Christmas you can still place orders but they will not be processed until the New Year. We are back on Thursday 2nd January.
Please select desired options to reveal part number, price and availability
Options
Type S - Stepless Adjustment
Type T - Adjustment by 15° serrations
Id No 2 - With 3 stainless steel clamping screws DIN 912
Product Description

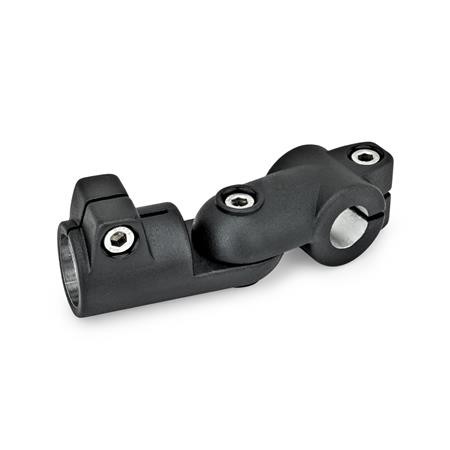

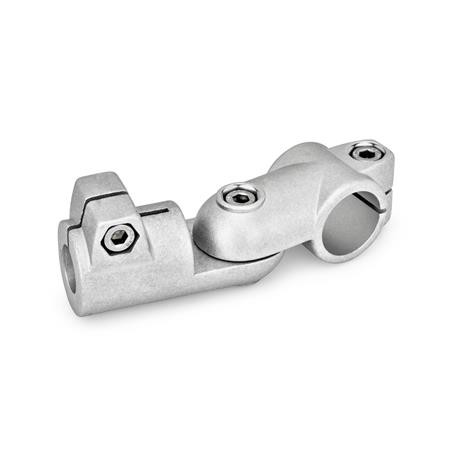

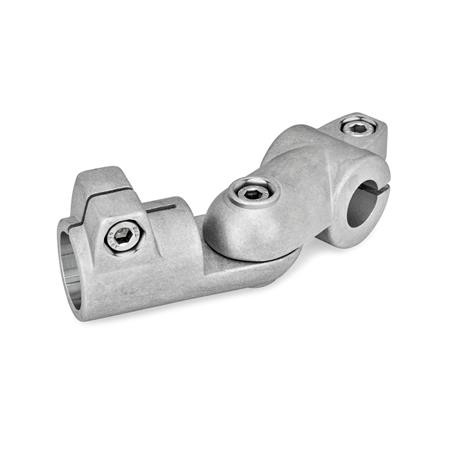

GN288 Swivel Clamp Connector Joint, Aluminium
These swivel clamp connector joints, GN 288, are an assembly of swivel clamp connectors GN276 and GN278.
For Type S, with a stepless adjustment, swivel clamp connectors with a centring step are used. Since the latter have an identical swivel width b, all bores d1/d2 can be combined as required.
The clamping bores are mechanically machined and designed for construction tubings GN990.
The standard version of the clamping screws are socket cap screws with hexagonal socket DIN912. They can be replaced by clamping kits GN911
Specification
Aluminum AL, Plastic coated, black, RAL 9005, textured finish SW. Blank, matt shot-blasted BL
Clamping bores - Mechanically machined
Socket cap screws DIN912 - Stainless Steel NI, AISI 304
Hexagon nuts DIN985 - Stainless Steel NI, AISI 304
