GN274
Swivel Clamp Connector, Aluminium
Christmas Closure - We are currently closed for Christmas you can still place orders but they will not be processed until the New Year. We are back on Thursday 2nd January.
Christmas Closure - We are currently closed for Christmas you can still place orders but they will not be processed until the New Year. We are back on Thursday 2nd January.
Please select desired options to reveal part number, price and availability
Options
Type S - Stepless Adjustment
Type T - 15 Degree Serration Adjustment
Identification number 2 - With 3 clamping screw DIN 912, stainless steel
Product Description

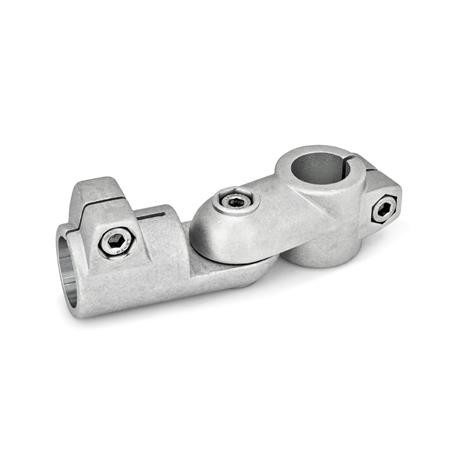

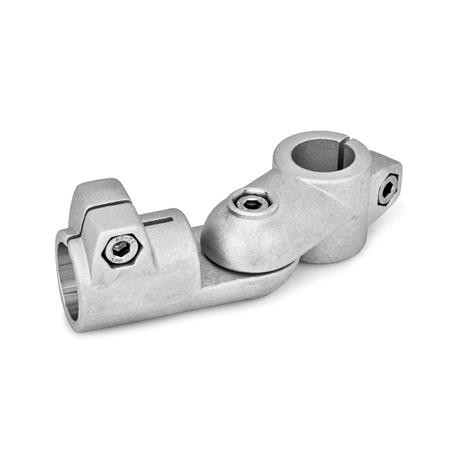

GN284 Swivel Clamp Connector Joint, Aluminium
The swivel clamp connector joints GN 284 are an assembly of the two swivel clamp connectors GN274 and GN276. For the type with a stepless adjustment (Type S) swivel clamp connectors with a centring step are used. Since the latter have an identical swivel width b, all bores d1/d2 can be combined as required.
The clamping bore is machined and designed for construction tubings GN990 or DIN2391, DIN2395 and DIN2462 respectively.
The hexagon nuts DIN985 are either zinc plated or in stainless steel to suit the screws.
The clamping nuts (Identification no. 1 - 2) of the connector clamps comprise a screw and a nut and, in the case of the hexagon screw and clamp-ing levers, a spacer tube is added.
Special executions: different surface finish or colours.
Specification

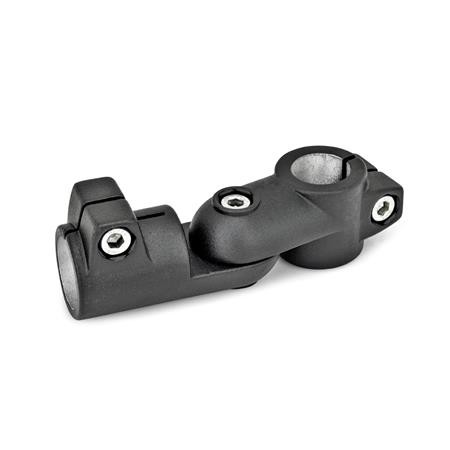

Aluminium AL, black plastic coated textured finish SW. Blank, matt shot blasted BL.
Clamping bore - Mechanically machined
Socket cap screws DIN912 - Steel ST, zinc plated / Stainless Steel NI, AISI 304
Hexagon nuts DIN985 - Steel ST, zinc plated / Stainless Steel NI, AISI 304
Adjustable clamping levers GN911 - Zinc die casting
Inserts / distance bushings - Stainless Steel NI, AISI 303
On Request
Different surface finish or colours
