GN272
Swivel Clamp Connector Base, Aluminium
Christmas Closure - We are currently closed for Christmas you can still place orders but they will not be processed until the New Year. We are back on Thursday 2nd January.
Christmas Closure - We are currently closed for Christmas you can still place orders but they will not be processed until the New Year. We are back on Thursday 2nd January.
Please select desired options to reveal part number, price and availability
Options
Type S - Stepless adjustment
Type T - Stepped adjustment with 15° divisions/serrations
Identificaiton number 2 - With one clamping screw DIN 912, Stainless Steel
Product Description

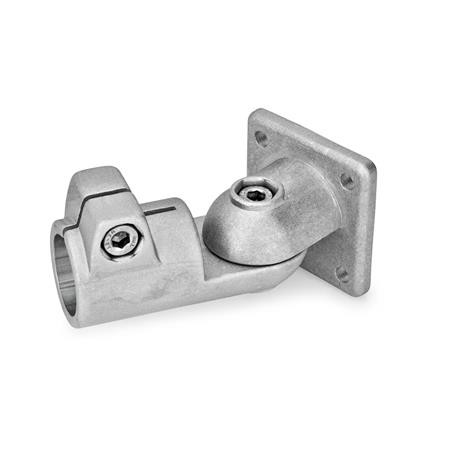

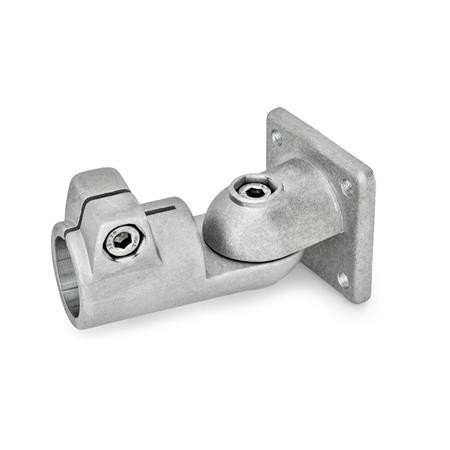

GN282 Swivel Clamp Connector Joint, Aluminium
The swivel clamp connector joints GN 282 are an assembly of of the swivel clamp connectors GN272 and GN276. For the type with stepless adjustment (Type S) swivel clamp connectors with a centring step are used.
The clamping bore is mechanically machined and designed for construction tubings GN990
The standard version of the clamping screws are socket cap screws with hexagonal socket DIN912. They can be replaced by clamping kits GN911.
Specification
Aluminium AL, plastic coated, black, RAL 9005, textured finish, SW. Blank, matt shot blasted, BL
Clamping bore - Mechanically machined
Socket cap screws DIN912 - Stainless Steel NI, AISI 304
Hexagon nuts DIN985 - Stainless Steel NI, AISI 304
Accessory
Clamping kits GN911.
