GN271

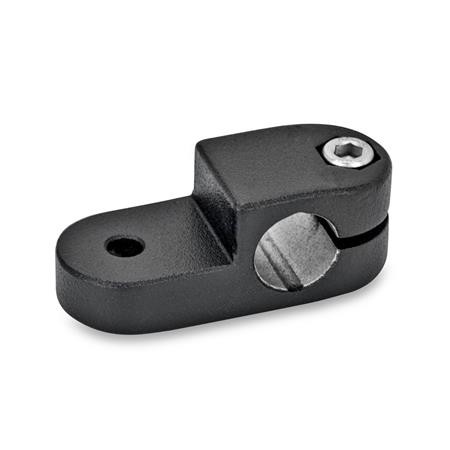

Swivel Clamp Connector Base, Aluminium
Christmas Closure - We are currently closed for Christmas you can still place orders but they will not be processed until the New Year. We are back on Thursday 2nd January.
Christmas Closure - We are currently closed for Christmas you can still place orders but they will not be processed until the New Year. We are back on Thursday 2nd January.
Please select desired options to reveal part number, price and availability
Options
Identification No. 2 - With one clamping screw DIN912, stainless steel
Product Description
GN277 Swivel Clamp Connector, Aluminium
The clamping bore of the swivel clamp connectors GN 277 is machined and designed for construction tubings GN990 or DIN2391, DIN2395 and DIN2462 respectively.
The hexagon nuts DIN985 are either zinc plated or in stainless steel to suit the screws.
The clamping nuts (Identification no. 1 - 2) of the connector clamps comprise a screw and a nut and, in the case of the hexagon screw and clamping levers, a spacer tube is added.
Swivel clamp connectors GN277 can be assembled with swivel clamp connectors GN271, GN273 or GN275 to create swivel clamp connector joints.
Special executions: different surface finish or colours.
Specification
Aluminium AL, Black plastic coated textured finish SW. Blank, Matt shot blasted BL
Clamping bore - Mechanically machined
Socket cap screws DIN912 - Steel ST, zinc plated / Stainless Steel NI, AISI 304
Hexagon nuts DIN985 - Steel ST, zinc plated / Stainless Steel NI, AISI 304
Adjustable clamping levers GN911 - Zinc die casting
Inserts / distance bushings - Stainless Steel NI, AISI 303
