Please select desired options to reveal part number, price and availability
Type

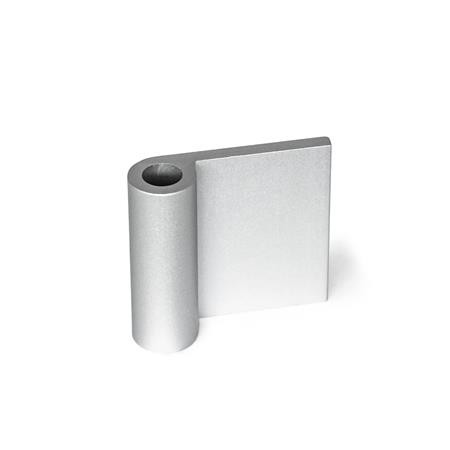

AF - exterior hinge wing

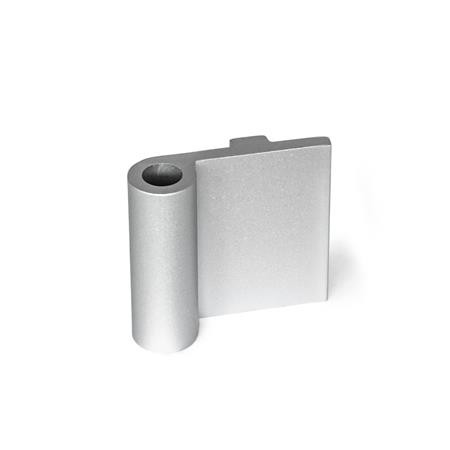

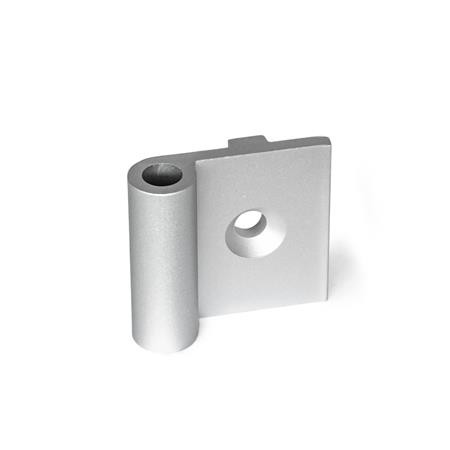

AN - exterior hinge wing, with guide step
IF - interior hinge wing
IN - interior hinge wing, with guide step
Identfication No.
A - without bores
C - with countersunk holes
Product description
GN2291 Hinge Wings, for Aluminium Profiles / Panel Elements
GN 2291 Hinge wings can be combined with GN 2290 bolt sets into individualized hinge versions.
As of a hinge wing length of l2 ≥ 250 mm, individual lengths can be created by shortening the hinge wing given the greater hole spacings.
Specification
Aluminum - Anodized, natural colour
Accessory
Bolt sets GN 2290
On request
other lengths and hole spacings
other finishes
CAD Viewer
Technical Data
