Please select desired options to reveal part number, price and availability
Options
Identification no. 2 with 2 clamping screws DIN912, stainless steel
Product Description

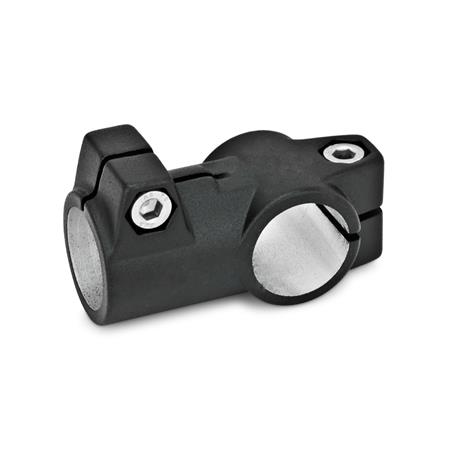

GN192 T-Angle Connector Clamp, Aluminium
The clamping bores of these T-angle connector clamps, GN 192, are machined and designed for construction tubings GN990 or DIN391, DIN2395 and DIN2462 respectively.
The standard clamping bolts are socket cap screws DIN912. They can be replaced with adjustable clamping kits GN911.
Specification
Aluminium - plastic coated, black, RAL 9005, textured finish SW. Blank, matt shot-blasted BL.
Clamping bores mechanically machined
Socket cap screws DIN912 - Stainless Steel AISI 304
Hexagon nuts DIN985 - Stainless Steel AISI 304
Accessory
Adjustable clamping kits GN911.
On Request
d1 / d2 with differing bore sizes.
CAD Viewer
Technical Data
