GN146
Flanged Connector Clamp, Aluminium, 4 Retaining Bores
Christmas Closure - We are currently closed for Christmas you can still place orders but they will not be processed until the New Year. We are back on Thursday 2nd January.
Christmas Closure - We are currently closed for Christmas you can still place orders but they will not be processed until the New Year. We are back on Thursday 2nd January.
Please select desired options to reveal part number, price and availability
Options
Identification No. 2 - with stainless steel clamping screw DIN912
Product Description

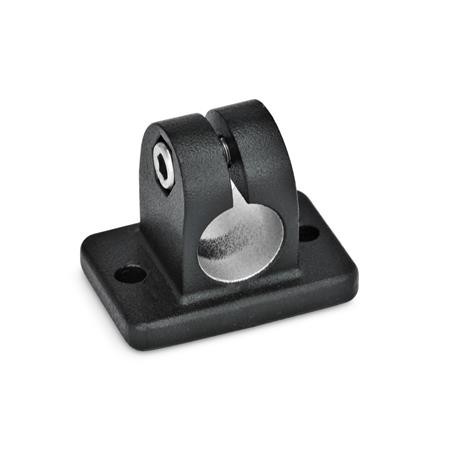

GN145 Flanged Connector Clamps, Aluminium, with 2 Mounting Holes
The clamping bores of these flanged connector clamps GN 145 are mechanically machined and designed for construction tubings GN990 or DIN2391, DIN2395 and DIN2462 respectively.
GN145 flanged connector clamps are also suitable for mounting on profile systems.
The standard clamping bolts are socket cap screws with hexagonal socket DIN912. They can be replaced by a clamping kit GN911
Specification
Aluminium - plastic coated, black, RAL 9005, textured finish SW matt shot-blasted. Blank BL matt shot-blasted.
Clamping bores mechanically machined
Socket cap screws DIN 912 - Stainless Steel AISI 304
Hexagon nuts DIN 985 - Stainless Steel AISI 304
Accessory
Clamping kits GN911
