GN132.2 Linear Actuator Connector, for Two-Way Axis System

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Identification No.2 - with 2 clamping screws DIN912, stainless steel

Product Description

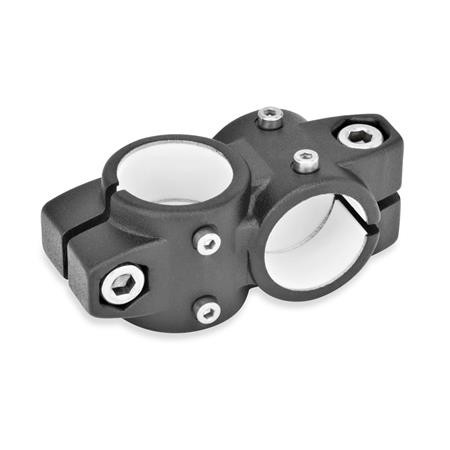

GN132.2 Linear Actuator Connector, Aluminium, for Two-Way Axis System

Linear actuator connectors GN 132.2 are normally supplied only in connection with a mounted linear actuator and for function control.

By means of the clamping screw on the clamping bores d₁ / d₂ the movement can either be set or the linear actuator connector can be clamped (after setting of final adjustment).

The standard clamping bolts are socket cap screws with hexagonal socket, DIN912. They can be replaced with clamping kit GN911

Specification

• Aluminium, powder coated, black, RAL 9005, textured finish S
• Sleeve bearing - Plastic (PTFE).
• Socket cap screws DIN912, Stainless Steel AISI 304.
• Hexagon nuts DIN985, Stainless Steel AISI 304. Self locking via polyamide ring.

Accessory

Clamping kit GN911
