GN131.1 Linear Actuator Connector, for Single Axis System

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Identification No. 2 with 2 clamping screws DIN912 stainless steel

Product Description

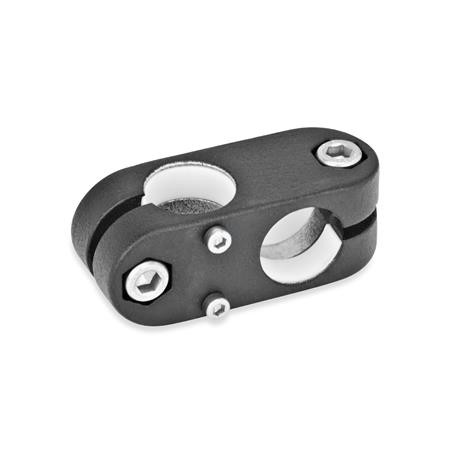

GN131.1 Linear Actuator Connector, Aluminium, for Single Axis System

The clamping bores of linear actuator connectors GN 131.1 are machined and designed for construction tubings GN990 or DIN2391,

GN131.1 linear actuator connectors are normally supplied mounted only in connection with a linear actuator and for function control.

Using the clamping screws on the guide bores d₁ / d₂ the movement can either be set or the linear actuator connector can be clamped (after final adjustment).

The standard version of the clamping screws are socket cap screws with hexagonal socket DIN 912. They can be replaced by clamping kits GN911

Specification

Aluminium, plastic coated, black SW RAL 9005, textured finish.

Clamping bores mechanically machined

Slidie insert - (PA / PTFE)

Socket cap screws DIN912 - Stainless Steel AISI 304

Hexagon nuts DIN985 Steel zinc plated / Stainless Steel AISI 304

Accessory

Clamping kit GN911
