Please select desired options to reveal part number, price and availability
Options

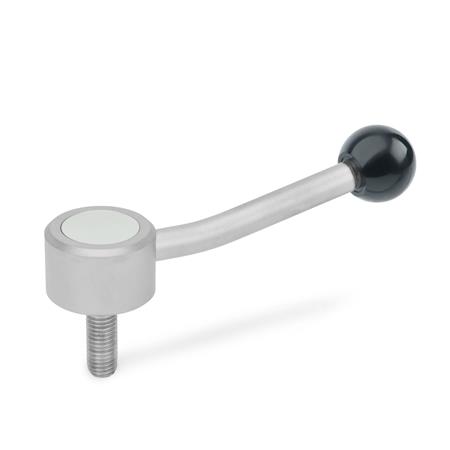

Type E - angled lever.

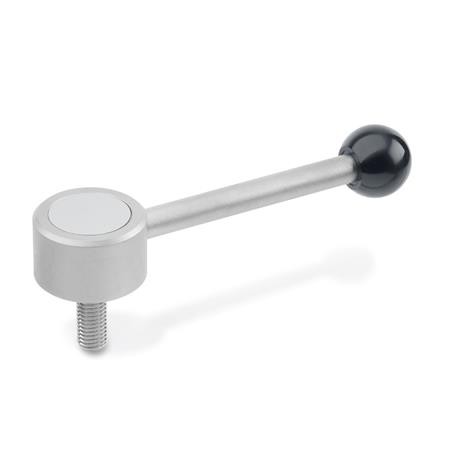

Type D - straight lever.
Product Description
GN125.5 Flat Adjustable Tension Lever
The overall height of these GN 125.5 tension levers is reduced to the absolute minimum, enabling them to be used in extremely restricted spaces. They are also ideal whenever a particular lever position is required.
The threaded stud is connected to the hub via serrations, which can be disengaged. Pulling the lever disengages the serrations, and the lever can be swivelled to the ideal clamping position. On releasing the lever it will automatically re-engage.
Specification
CAD Viewer
Technical Data
