GN119
Door Lock, Stainless Steel, Various handle Options
Christmas Closure - We are currently closed for Christmas you can still place orders but they will not be processed until the New Year. We are back on Thursday 2nd January.
Christmas Closure - We are currently closed for Christmas you can still place orders but they will not be processed until the New Year. We are back on Thursday 2nd January.
Please select desired options to reveal part number, price and availability
Options

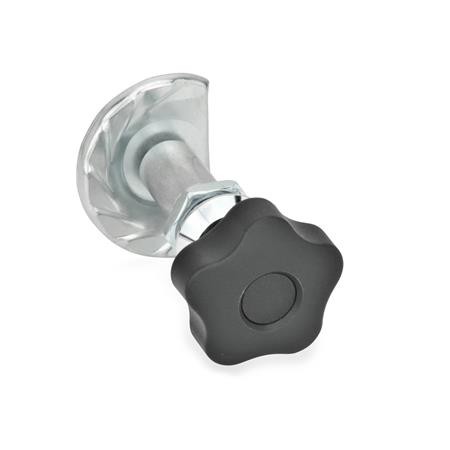

Type SG - Operation with star knob
Type DK - Operation with triangular spindle (DK7)

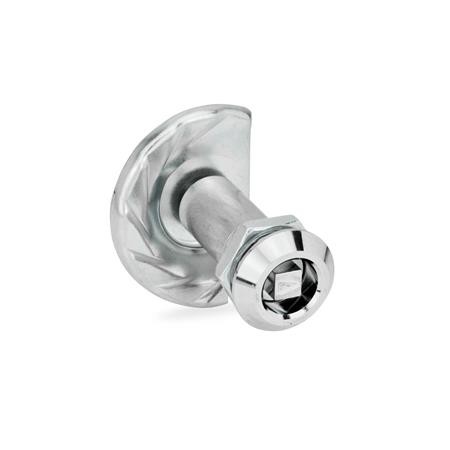

Type VK7 - Operation with square spindle (A/F 7)
Type VK8 - Operation with square spindle (A/F 8)

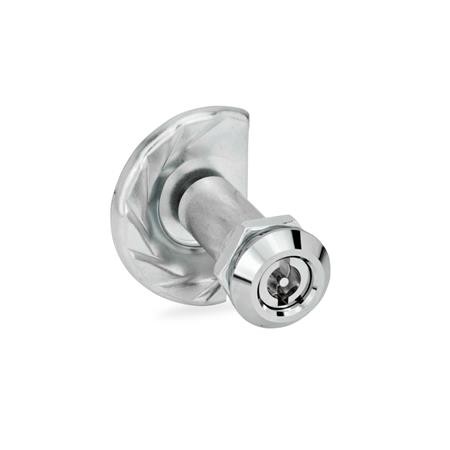

Type VDE - Operation with double bit
Product Description
GN 119 Door Lock, Steel, Cam Style, Various Handle Options
These door locks have a pulling-in range of 10mm. Locking is achieved by turning the door lock clockwise.
Specification
Lock housing / operating bolt - Zinc die casting, chrome plated
Cam latch - Sheet steel, zinc plated, blue passivated
Distance piece - Aluminum
Star knobs GN5337.2 - Plastic (Polypropylene PP), black, matt
Clamping Range (Door + Frame Thickness)
A1 = 17-25
A2 = 22-30
A3 = 27-35
A4 = 32-40
A5 = 37-45
A6 = 42-50
A7 = 47-55
A8 = 52-60
A9 = 57-65
Accessories
Socket keys GN119.2
Protective caps GN120
Opening handles GN120.1
