Please select desired options to reveal part number, price and availability
Options
Type AD7 - Wiith three exterior flats.

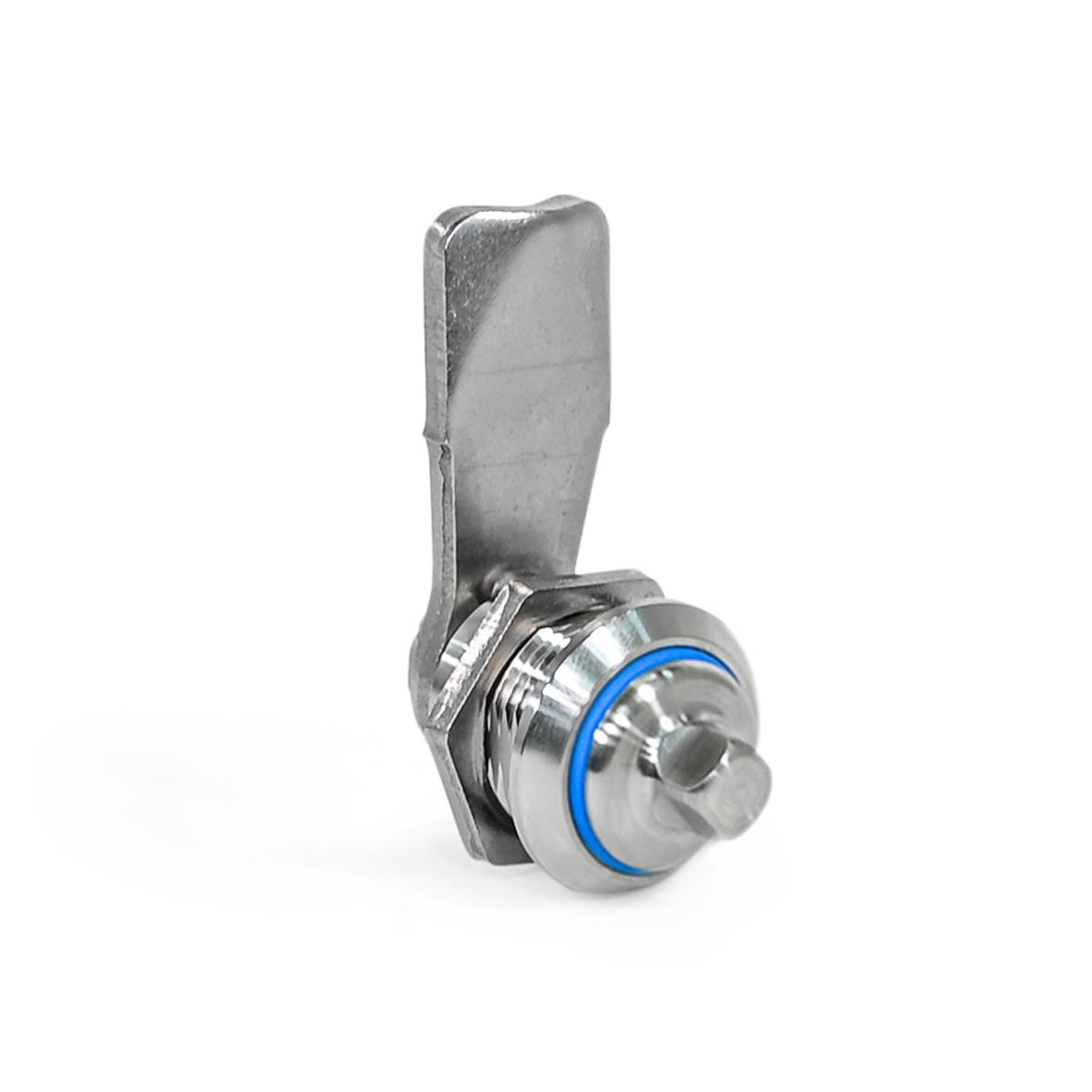

Type AV8 - Wiith four exterior flats.

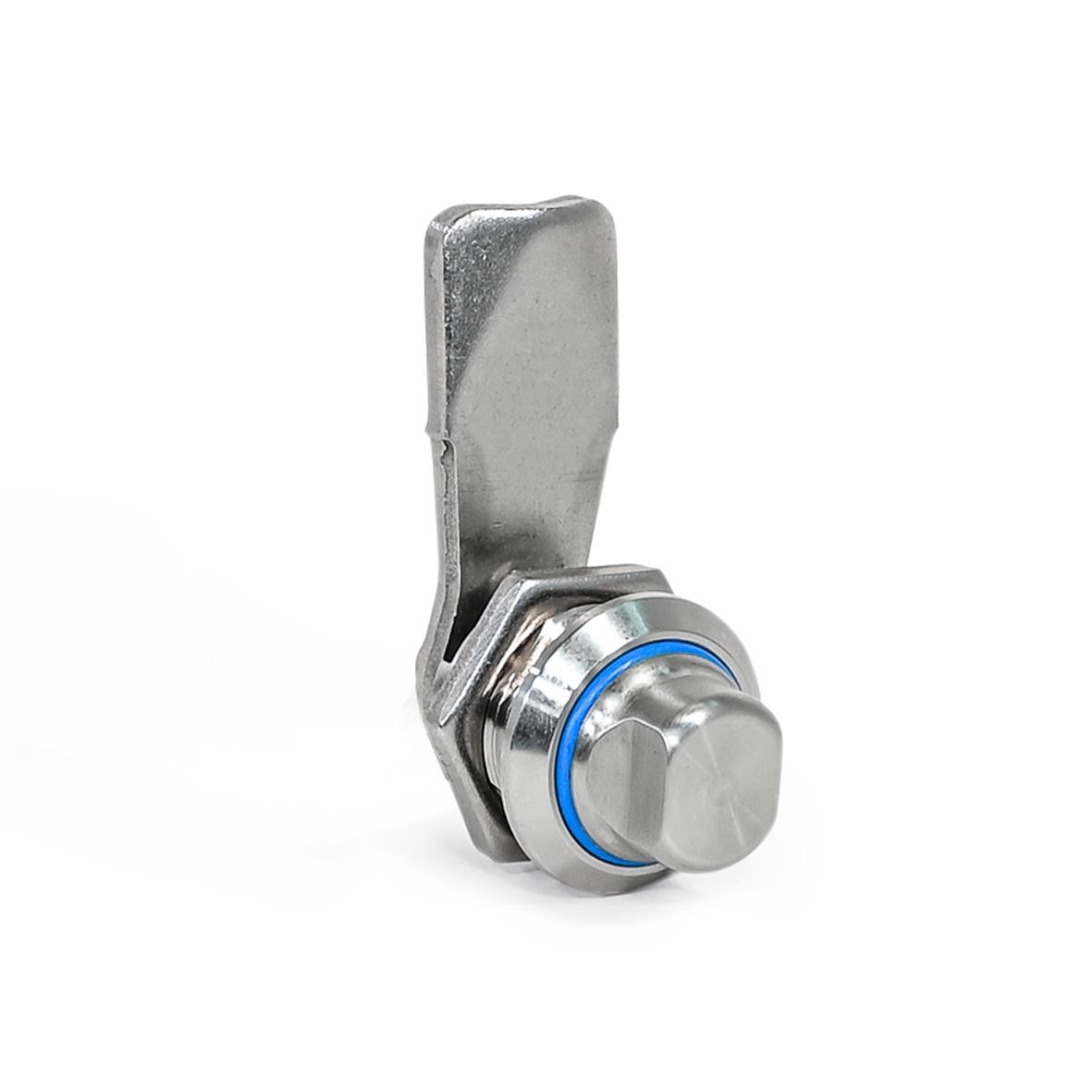

Type AZ13 - Wiith two exterior flats.
Product Description
GN115 Latch Stainless Steel, Hygienic, Operation with Socket Keys
Latches GN 115 lock by a turning operation limited to 90° which moves the latch arm in the locked position behind the door frame. The bevels of the latch arm ease the closing of the door.
Thanks to the stainless steel materials used, the latches are optimally suited for use in corrosive environments. Thanks to multiple seals, the parts have the highest protection rating of IP 69k. The latches also satisfy the basic hygiene requirements according to DIN 1672-2 and DIN 14159.
Latch arms are available in a variety of bend angles to cover a latch arm distance A from 6 to 50 mm (version NI) and from 6 to 28 mm (version A4).
Latches GN115 are supplied with loosely enclosed latch arm.
Specification
Stainless Steel AISI 304 NI Stainelss Steel AISI 316 A4
Seals - Acrylonitrile butadiene rubber (NBR). Silicone rubber (MVQ)
Temperature resistant from -30° C to 100° C
Protection class IP 69k
Accessory
Socket Keys GN119.2 (for type AD7 and AV8)
Protective Guide Plates GN120.2
Internal Cabinet Handles GN120.3
Sheet Metal Punches GN123
CAD Viewer
Technical Data
