GN115.8
Hook Type Latch With Key
Please select desired options to reveal part number, price and availability
Options

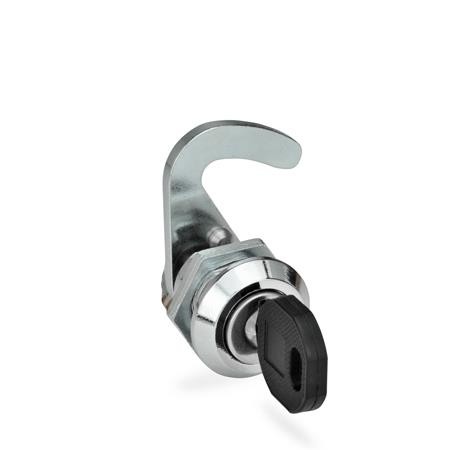

Type SC - Operation with key (same lock).

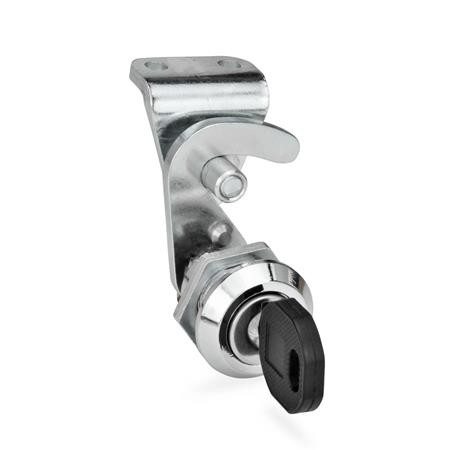

Type SU - Operation with key (different lock).
Type SCK - Operation with wrench (same lock).
Type SUK - Operation with wrench (different lock).

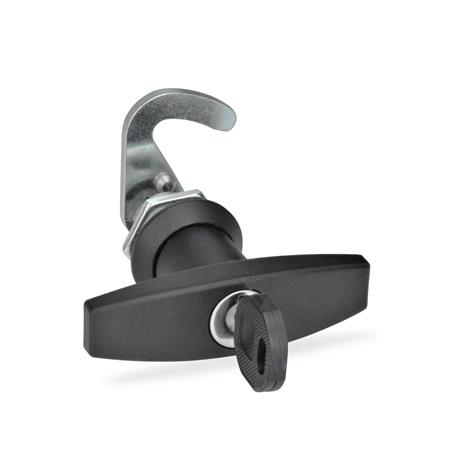

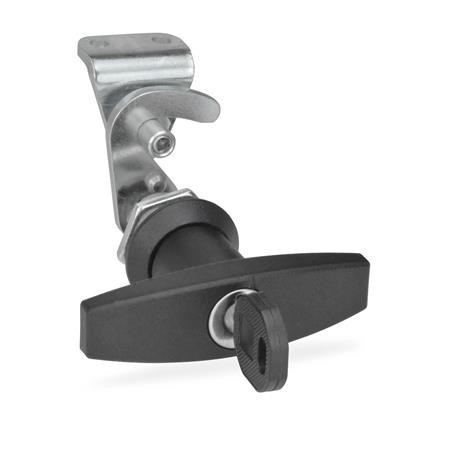

Type SCT - Operation with T-Handle (same lock).

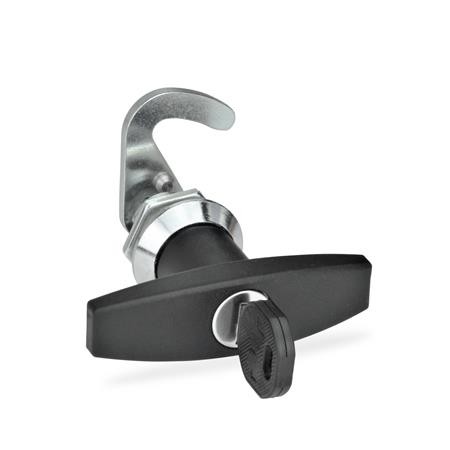

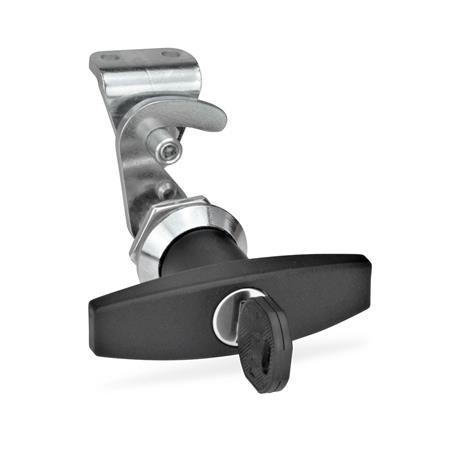

Type SUT - Operation with T-handle (different lock).
Hook Version H1 - Pivoting radius R=28

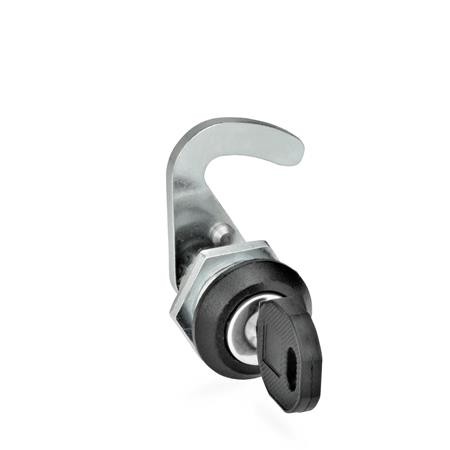

Identification Number 1 - without latch bracket.

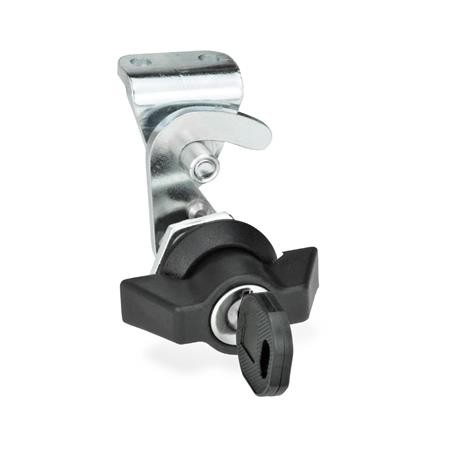

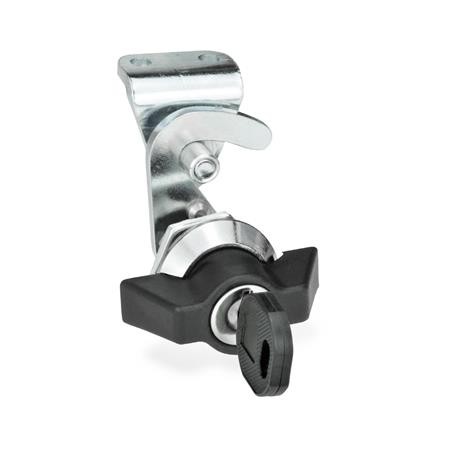

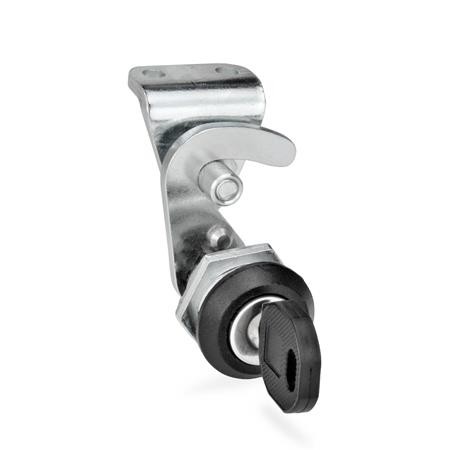

Identification Number 2 - with latch bracket.
Product Description
GN115.8 Hook Type Latch with Key, Lockable.
These hook type latches GN 115.8, with hook and latch bracket, are ideal for use on sliding doors and flaps. The locking action is in radial direction to the axis of rotation, resulting in a wide variety of different uses.
The types with a different lock are available in more than 200 variants, whose key is marked by numbers.
Two keys are supplied with the unit. The key can be removed in both end positions.
They are supplied with the hook enclosed loose.
Specification
Lock housing - Zinc die casting.
Locating ring - chrome plated, CR. Plastic coated, black, RAL 9005, textured finish SW
All other parts - Steel zinc plated, blue passivated.
Key - Nickel, silver coloured with plastic hand piece.

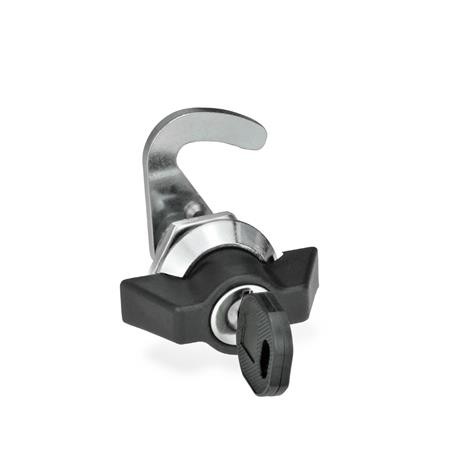

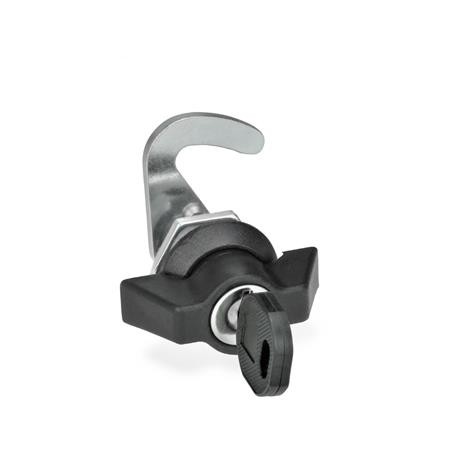

Wing knob / T Handle - Plastic (Polyamide PA), black, matt.
Accessories
Protective caps GN120
Opening handles GN120.1
On Request
Hook latches with other hook distance A
Hook with other pivoting radius R
