GN120.1
Opening Handle, for Latches
Please select desired options to reveal part number, price and availability
Options

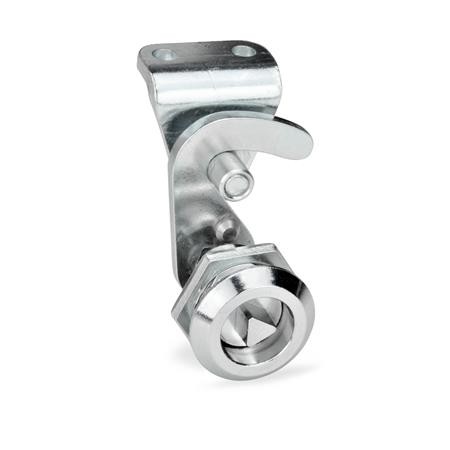

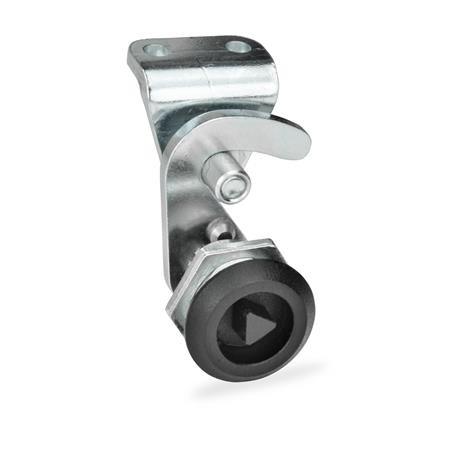

Type DK - Operation with triangular spindle (DK7).

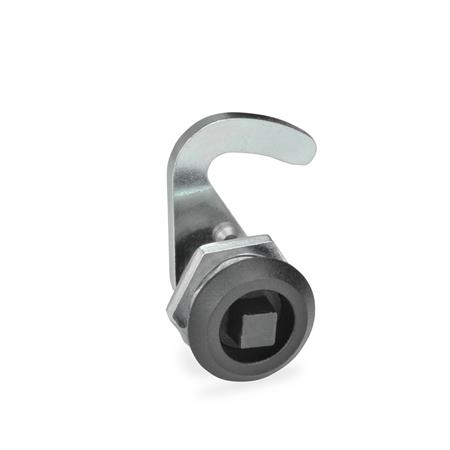

Type VK7 - Operation with square spindle A/F7.

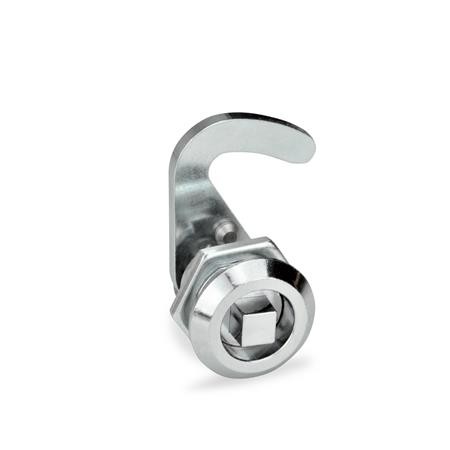

Type VK8 - Operation with square spindle A/F8.

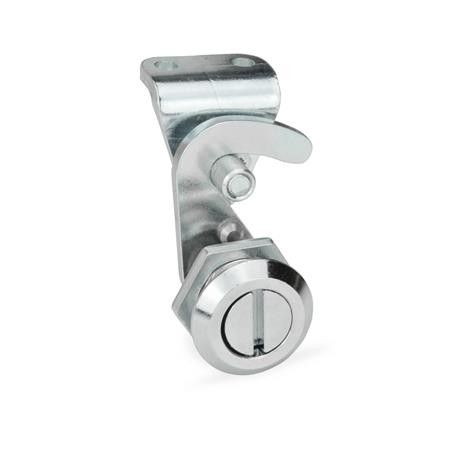

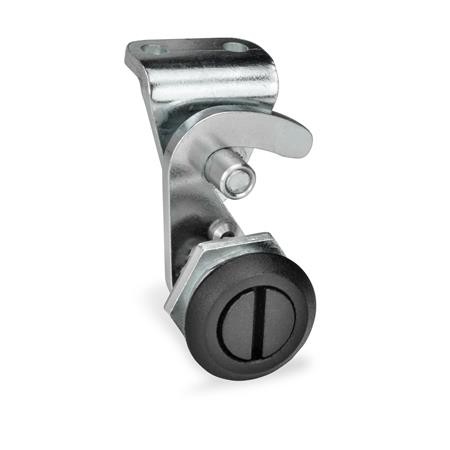

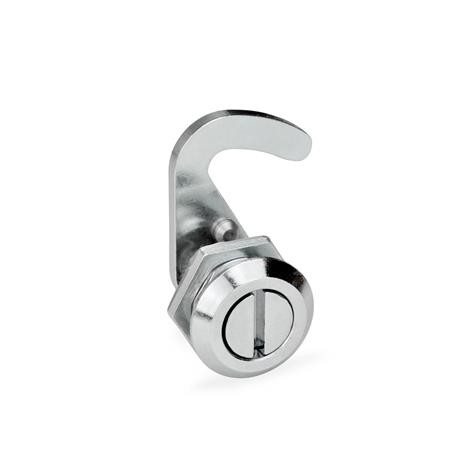

Type SCH - Operation with slot.

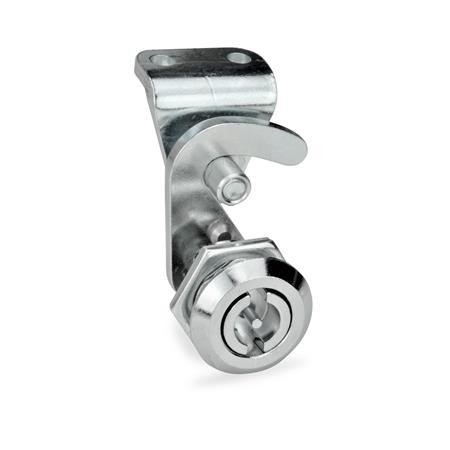

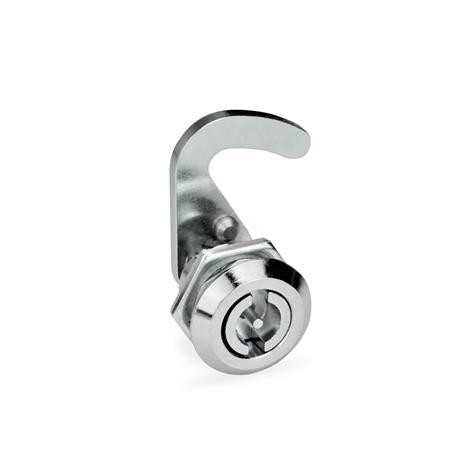

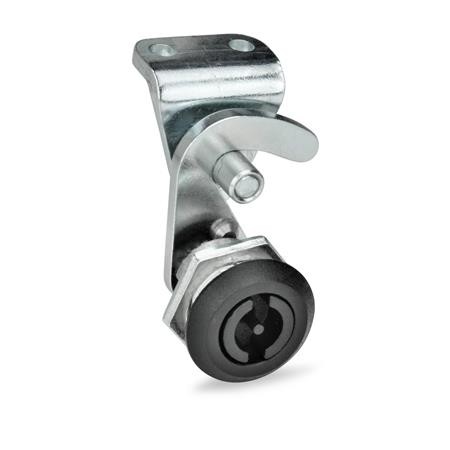

Type VDE - Operation with double bit.
Hook Version H1 - Pivoting radius R=28.
Identification Number 1 - without latch bracket.
Identification Number 2 - with latch bracket.
Product Description
GN115.8 Hook Type Latch - Operation With Socket Key
These hook type latches GN 115.8, with hook and latch bracket are ideal for use on sliding doors and flaps. The locking action is in radial direction to the axis of rotation, resulting in a wide variety of different uses.
They are supplied with the hook latch enclosed loose.
Specification
Lock housing - Zinc die casting.
Locating ring - Chrome plated CR. Plastic coated, black, RAL 9005, textured finish SW
All other parts - steel zinc plated, blue passivated.
Accessories
Socket keys GN119.2
Protective caps GN120
Opening handles GN120.1
On Request
Hook type latches with different hook distance A
Hook with different pivoting radius R
