GN115.8
Hook Type Latch With Key
Please select desired options to reveal part number, price and availability
Options

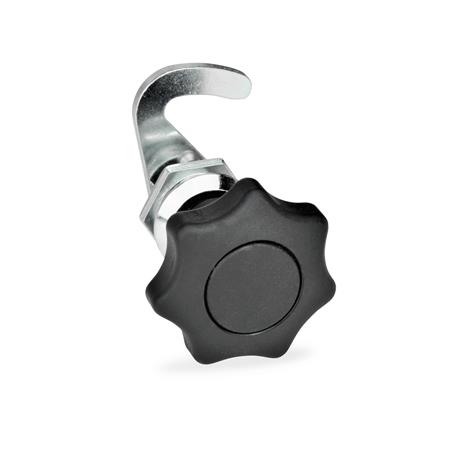

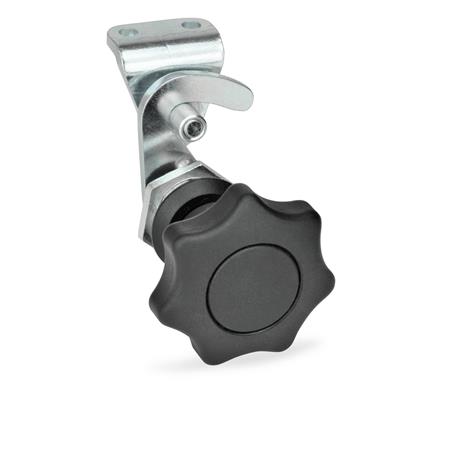

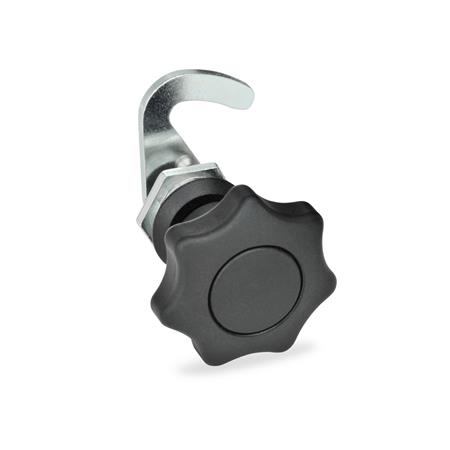

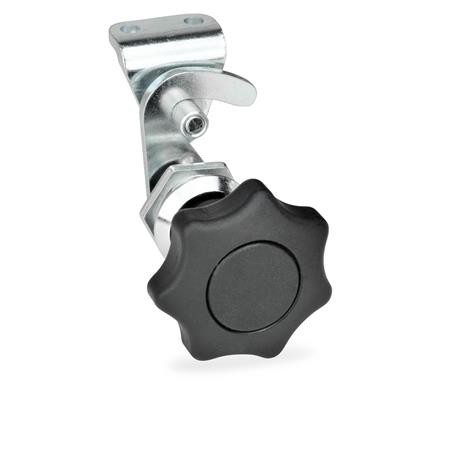

Type SG - Operation with star knob.

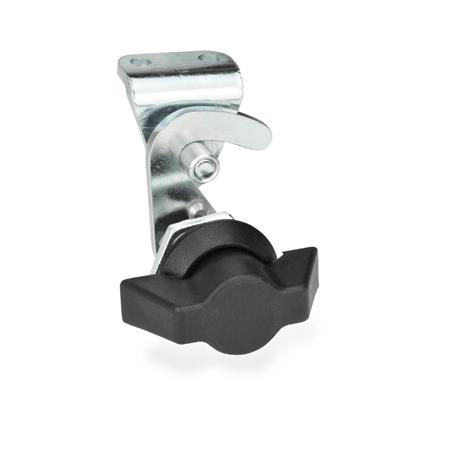

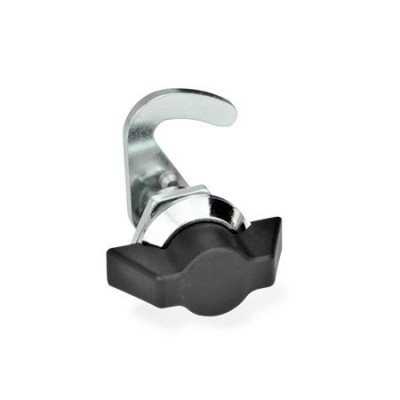

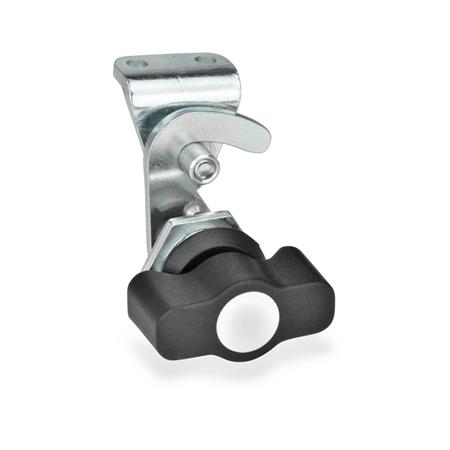

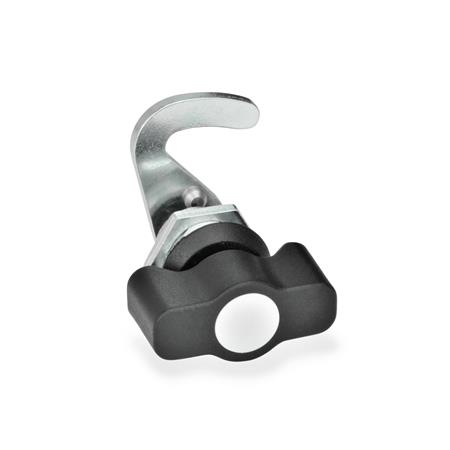

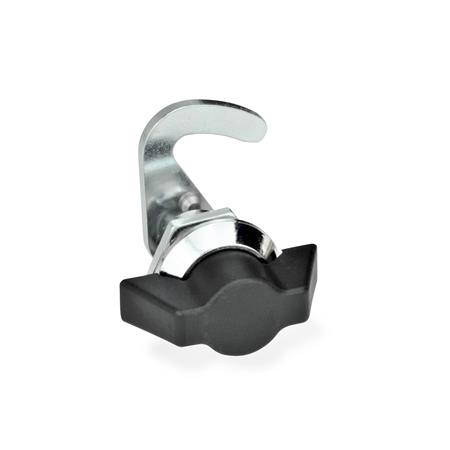

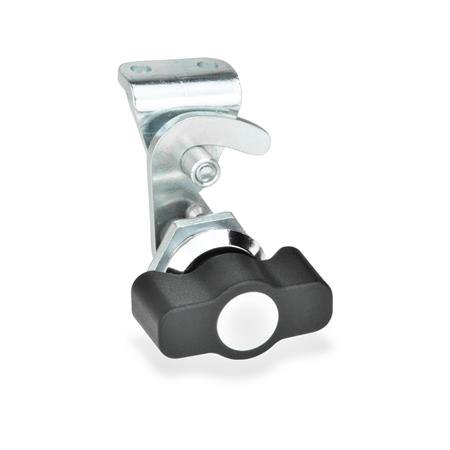

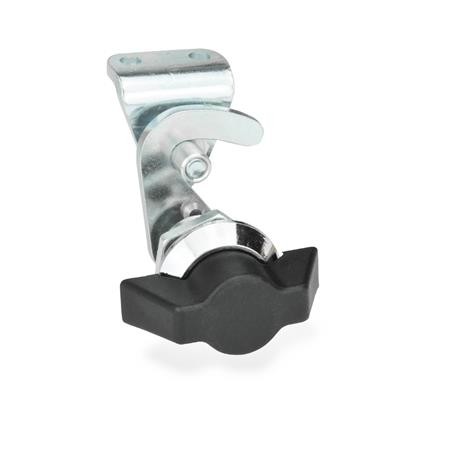

Type SK - Operation with wing knob.

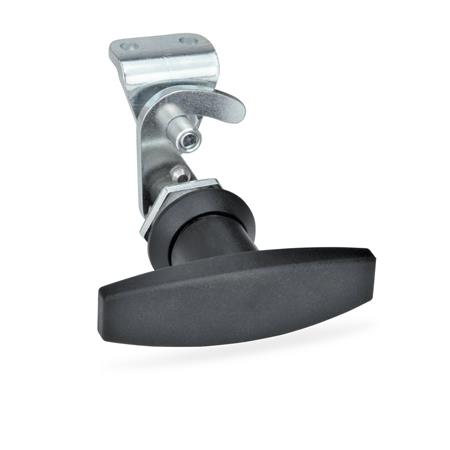

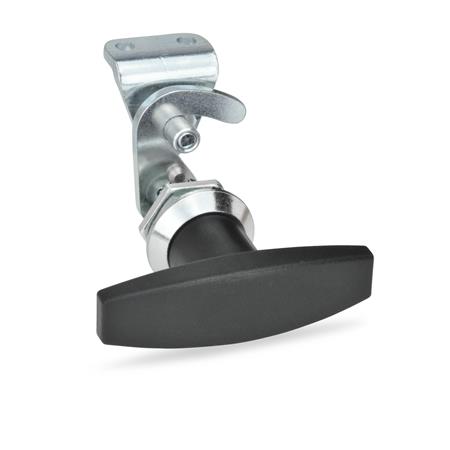

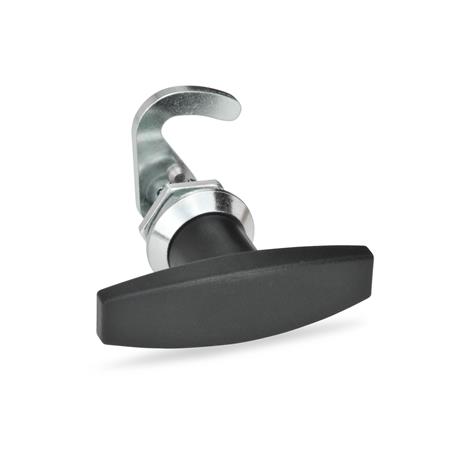

Type ST - Operation with T-Handle.

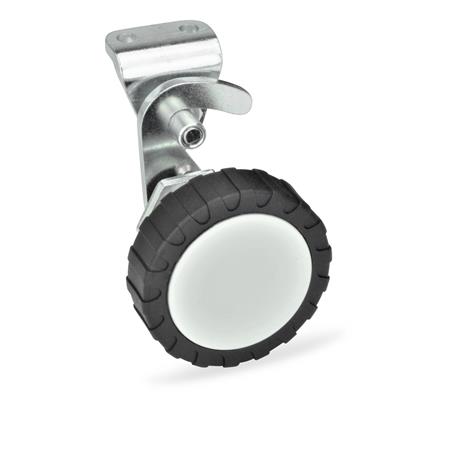

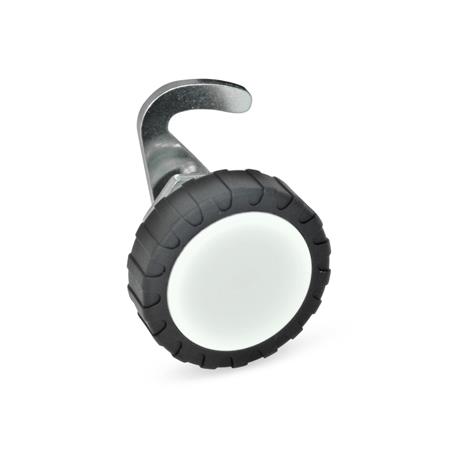

Type RG - Operation with knurled knob GN7336

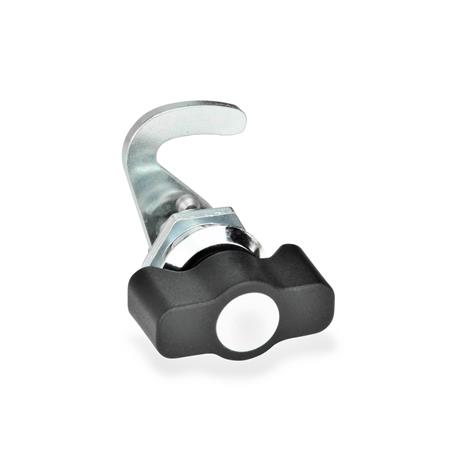

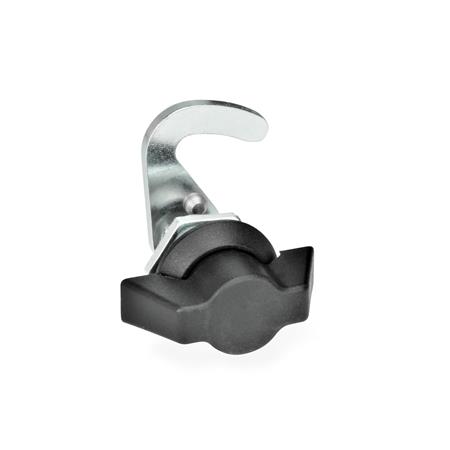

Type KG - Operation with wing knob.

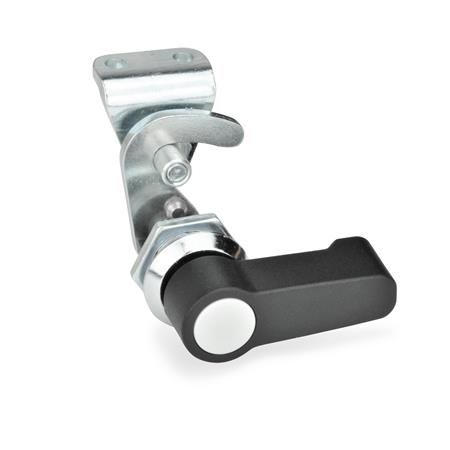

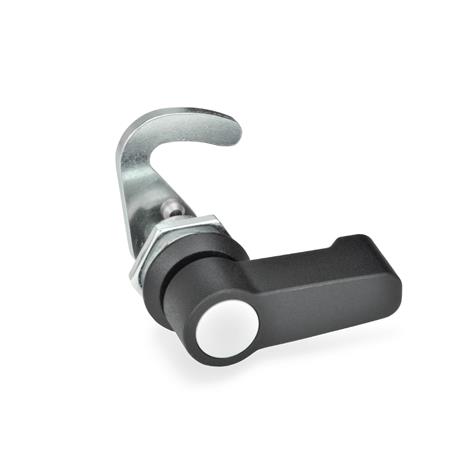

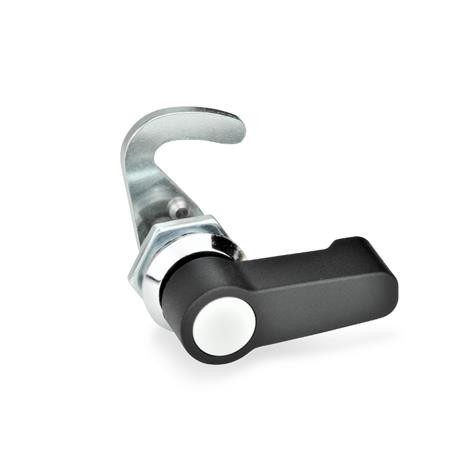

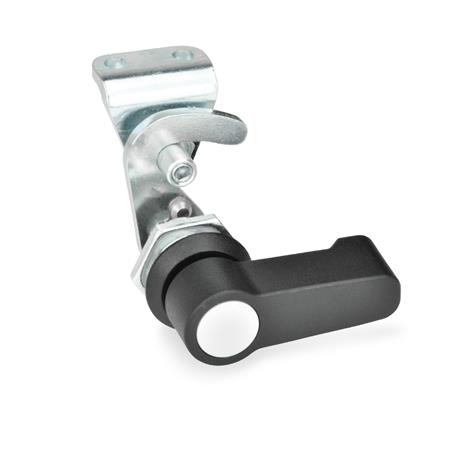

Type HG - Operation with lever.
Hook Version H1 - Pivoting radius R=28
Identification number 1 - without latch bracket.
Identification number 2 - with latch bracket.
Product Type
GN115.8 Hook Type Latch, Not Lockable, Various Handle Options
These hook type latches, GN 115.8, with hook and latch bracket are ideal for use on sliding doors and flaps. The locking action is in radial direction to the axis of rotation, resulting in a wide variety of different uses.
They are supplied with the hook enclosed loose.
Specification
Lock housing - Zinc die casting
Locating ring - chrome plated CR, plastic coated, black, RAL 9005, textured finish SW.
All other parts - Steel, zinc plated, blue passivated.
Operation handles - Plastic (Polyamide PA), black, matt.
Cover cap (type RG, KG, HG), light grey.
Avaliable on Request:
Hook-type latches with other hook distance A
Hook with other pivoting radius R
