GN115.1 Mini Latch, Zinc Die Cast, Chrome Plated, Plastic Handle

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type DK - Operation with triangular spindle DK 6.5

Type SC - Lock with one combination

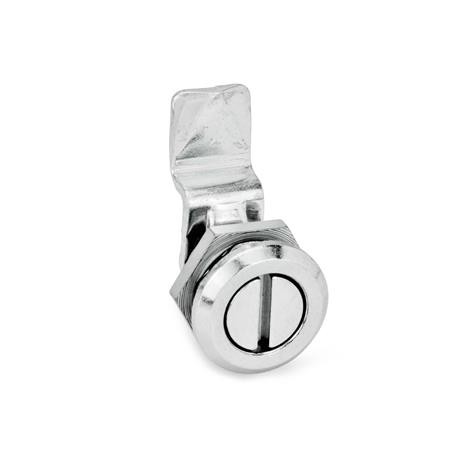

Type SCH - Operation with slot

Type SCK - Operation with wing knob, lockable

Type SK - Operation with wing knob

Type VK - Operation with square spindle VK 6

Product Description

GN115.1 Mini Latch, Zinc Die Cast, Chrome Plated, Plastic Handle

This mini latch, GN 115.1, has  smaller dimensions than GN115. It lends itself ideally for small doors and flaps, where there is limited space or an unobtrusive appearance is required

They lock by a turning operation limited to 90° which moves the locking behind the door frame. The bevels of the locking ease the closing of the door. Latches with different cranks cover a latch distance A from 7.5 to 19.5 mm

The lockable mini latch (SC and SCK) is supplied with 2 keys. The key can be withdrawn from the lock in either end position.

The lock is standard, and has the same barrel so that every lock can be opened using the same key.

The lockings are included loose (except for type SC).

Specification

Lock housing - Zinc die casting

Locating ring - chrome plated

Wing knob (type SK and SCK) - Zinc die casting, plastic coated, black, RAL 9005, textured finish

Key - Nickel silver with plastic hand piece

All other parts - Steel zinc plated, blue passivated

Accessories

Socket keys GN119.2.

Protective caps GN120
