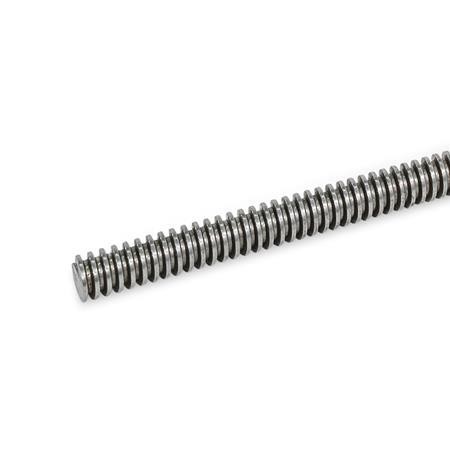

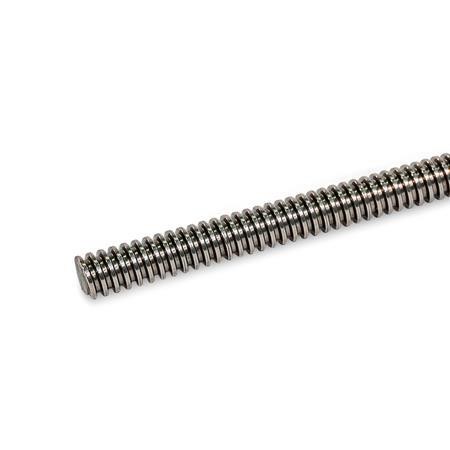

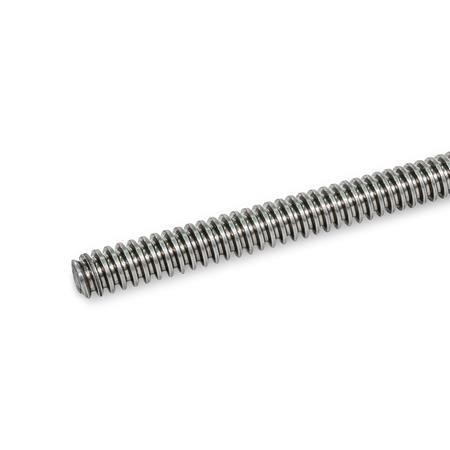

GN103 Trapezoidal Lead Screws, Single / Multi Start, Steel /Stainless Steel
Together with trapezoidal lead nuts, trapezoidal lead screws GN 103 convert rotational movements into linear movements. They are used to move parts and transmit forces, such as in mechanical and plant engineering.
The threaded spindles are manufactured using a rolling process, which gives the thread a high level of strength. Depending on the application, either the nut or the threaded spindle moves axially during adjustment.
The thread dimensions of the trapezoidal lead screws comply with DIN103. Trapezoidal thread drives can be assembled in conjunction with spindle nuts of the same thread size, number of thread starts and lead direction. The ends of the trapezoidal lead screws can be machined individually to accommodate the bearing or drive.
Specification
Accessory
Trapezoidal Lead Nuts GN103.1 (Gunmetal, with flange).
Trapezoidal Lead Nuts GN103.1 (Plastic, with flange).
Trapezoidal Lead Nuts GN103.2 (with Hex).
Trapezoidal Lead Nuts GN103.3 (Cylindrical).
* For lead direction RH only
