GN323.8
Disc Handwheel, Aluminium, For Position Indicators GN000.8
Please select desired options to reveal part number, price and availability
Options
Type R - numbers ascending clockwise
Type L - numbers ascending anti-clockwise
Product Description

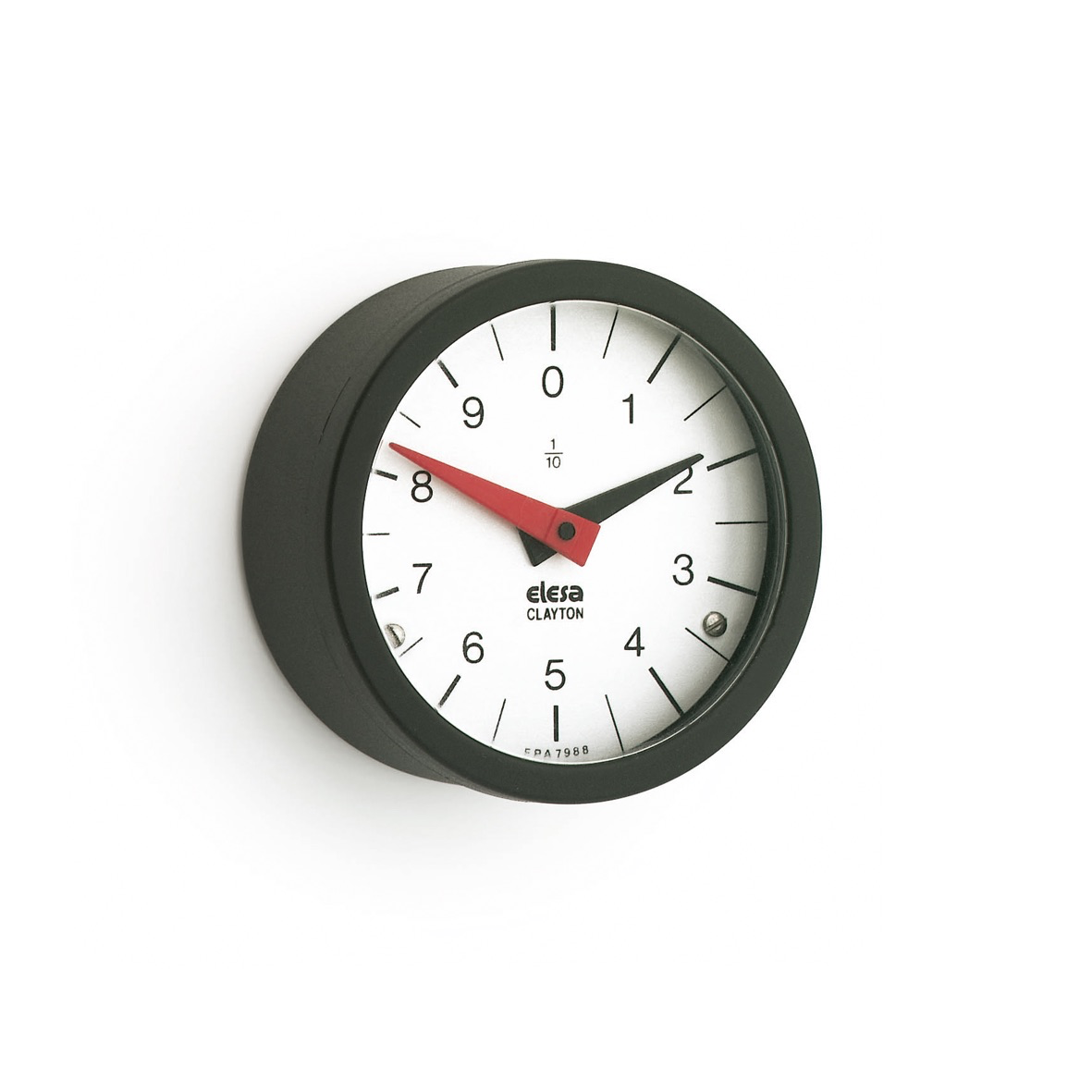

GN000.8 (GA) Position Indicator with Analogue Display (Pendulum System)
These GN 000.8 position indicators have been designed for installation in various types of operating elements, such as regulating rpm speed on steplessly adjustable gearboxes.
The housing, hand spindle, and safety glass are all produced from one piece of material and ultrasonically welded to give a spray waterproof and corrosion-resistant unit (Protection class IP 65).
The pendulum system is mounted on ball bearings to achieve the most accurate reading on the analogue display and is operational up to a shaft inclination of 60°.
The reduction ratio shows the number of revolutions that are required by the long red pointer to make the small black pointer complete one revolution.
Specification
On request
Special scales, glycerin filling as a damping media
Please Note
Some sizes require a minimum order quantity of 10pcs for online ordering - for smaller quantities, please call us.
