DIN9861D
Precision Punch with Countersunk head with TIN coating
Website -The website is being restored at the moment, and will be down from time to time, please contact sales@berger-tools.co.ukor phone *441732763377
Website -The website is being restored at the moment, and will be down from time to time, please contact sales@berger-tools.co.ukor phone *441732763377
Please select desired options to reveal part number, price and availability
Product Description

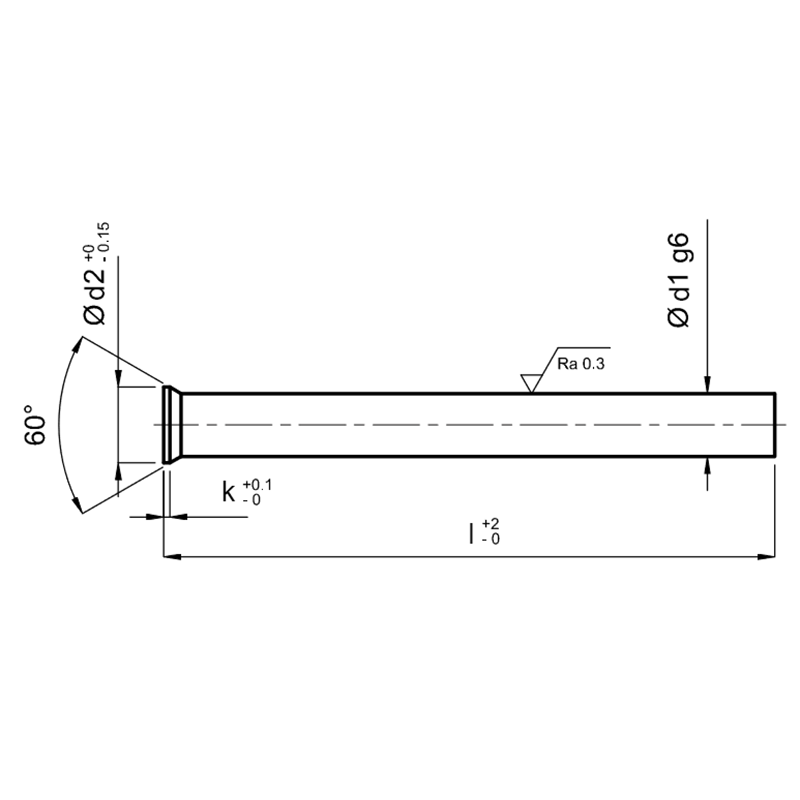

EP-D-H Ejector Pin, Countersunk (according to DIN 1530D standard part 3)
These countersunk ejector pins are made from top quality, through hardened steel with a hot forged head. They are a cost effective choice.
Specification
WS = Tool Steel 1.2210 or 1.2067
Shaft HRC 60 +4 / -2
Head HRC 45 ± 5
Head hot forged, through hardened shaft tempered and fine ground to g6.
Other standards and special tolerances available on request.
