Product Description

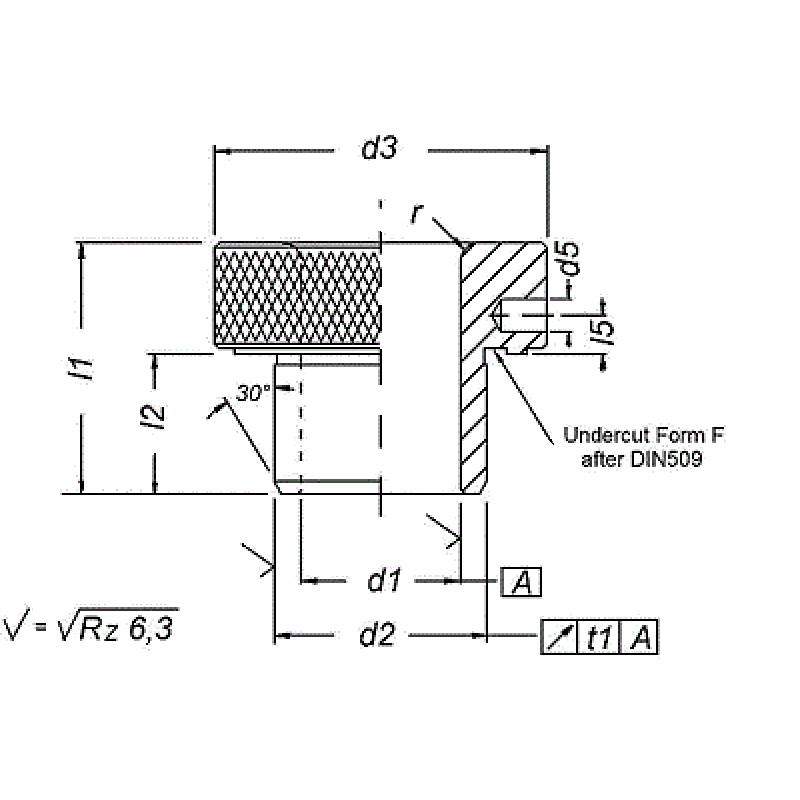

DIN 173A Renewable Bush - slip A
Hardened and wear-proof, made from best quality special case-hardening steel. As a register for the stop pin it is advisable to use the shouldered screw as a locking screw after DIN 173A.
For use with DIN 172A /DIN 179A liner bush.
Please contact us if the size you require is not listed.
Specification
Hardened, wear-proof, special case-hardening steel, ground internally and externally.
Hardness - (740 +/- 80) HV 10
Tolerance - For bore d1 = F 7 For outside dia. d2 = m 6
CAD Viewer
Technical Data
