Product Description

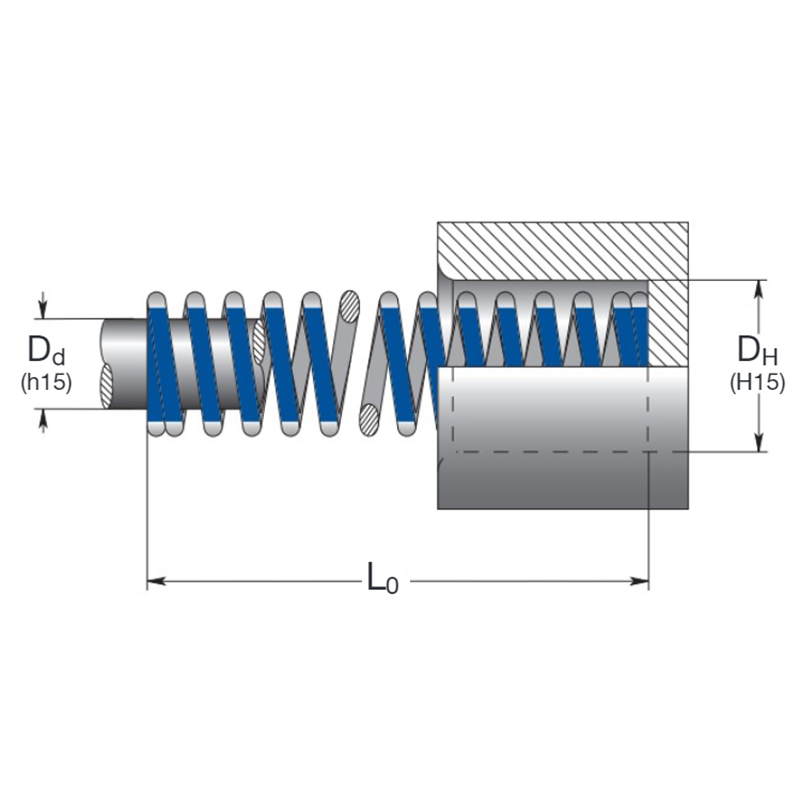

RMBL - Blue & Silver Light Load Oval Wire Spring US Standard
Die spring, for light loads. Oval wire high force compression spring, manufactured to USA standards and RoHS compliant, and now with updated sizes to be fully interchangeable with market standards.
High quality and long lasting, these springs are temperature tolerant from -30°C to 250°C.
Designed and produced using materials and geometries for maximum performance and duration, and also in conditions of maximum deflection.
The new benchmark E-coat cataphoretic paint coating provides a unique finish and excellent corrosion protection with high mechanical strength. Coating thickness controlled to 10 < 30 μm.
RMBL Springs are supplied in pack sizes, varying between 5-200 pieces dependant on size chosen. Prices shown for each part – the pack size will be recalculated in your basket. Alternatively, for smaller quantities please contact our sales team for a quotation or call us on 01732 763377.
Custom made springs are also available, please contact us for further details.
Specification
High grade hardened alloy spring steel to UNI 3545, DIN 17221, DIN 17223. Cr-Si
Special cross section wires to reduce stress.
Both ends closed and ground square to the axis.
Close controlled heat treatment.
Shot peened to reduce stress levels and improve working life.
*Deflection values near solid intended for design information ONLY.
