GN920.1 Wedge Clamp

CloseNextPrevious



CloseNextPrevious

GN920.1: Wedge Clamp
Type: GA - with 2 Fixing Threads



CloseNextPrevious

GN920.1: Wedge Clamp

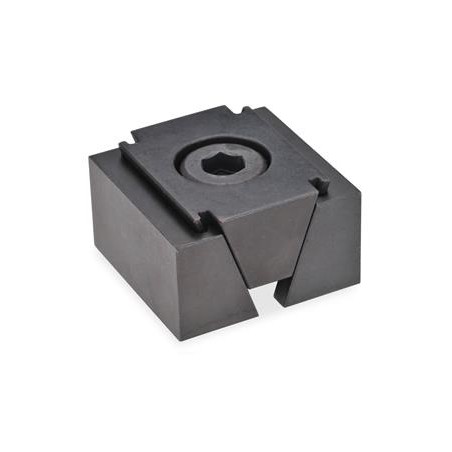

Type: GL - Smooth Clamping Surfaces



CloseNextPrevious

GN920.1: Wedge Clamp

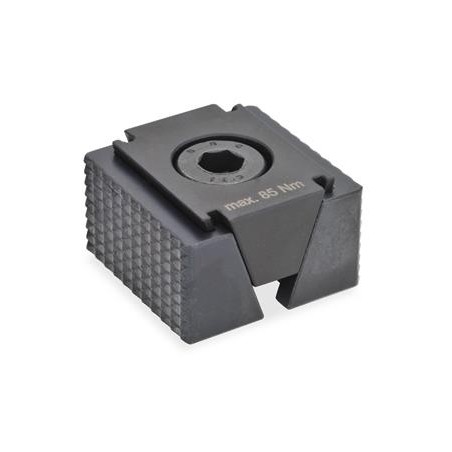

Type: RF - Grooves Clamping Surfaces



CAD Viewer Technical Data

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type GL - Smooth clamping surfaces

Type GA - With 2 fixing threads for attachment jaws

Type RF - Ribbed clamping surfaces

CAD Viewer Technical Data

Product Description

GN920.1 Wedge Clamp

Clamping with GN 920.1 wedge clamps is achieved via the socket head cap screw and the clamp wedge, which function by moving both jaws outward.

When the screw is loosened, the clamp wedge returns to its original positoin via an internal return spring, which, in turn, loosens the tension.

Wedge clamps are ideal for multiple clamping operations, but can also be used for clamping individual workpieces.

The long hole in the clamp wedge serves to compensate for tolerances in the workpiece.

Specification

Steel ST - Wedge surfaces hardened, blackened

Socket head cap screw DIN7984 - Tensile strength class 10.9 (1000 N/mm2)

Standard part number GN920 has been changed! Because of a change of the standard part number your input is no longer valid. Your search was automatically changed to the new standard part number GN920.1.
