Please select desired options to reveal part number, price and availability
Options

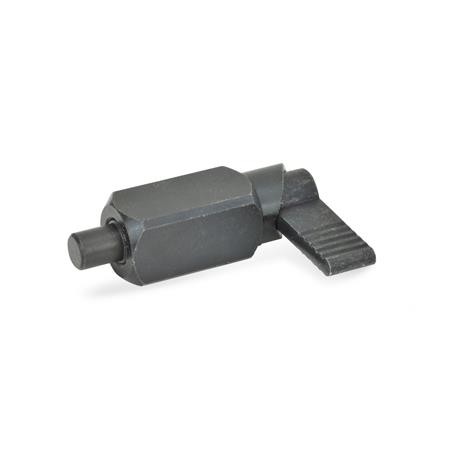

Type A - without plastic cap

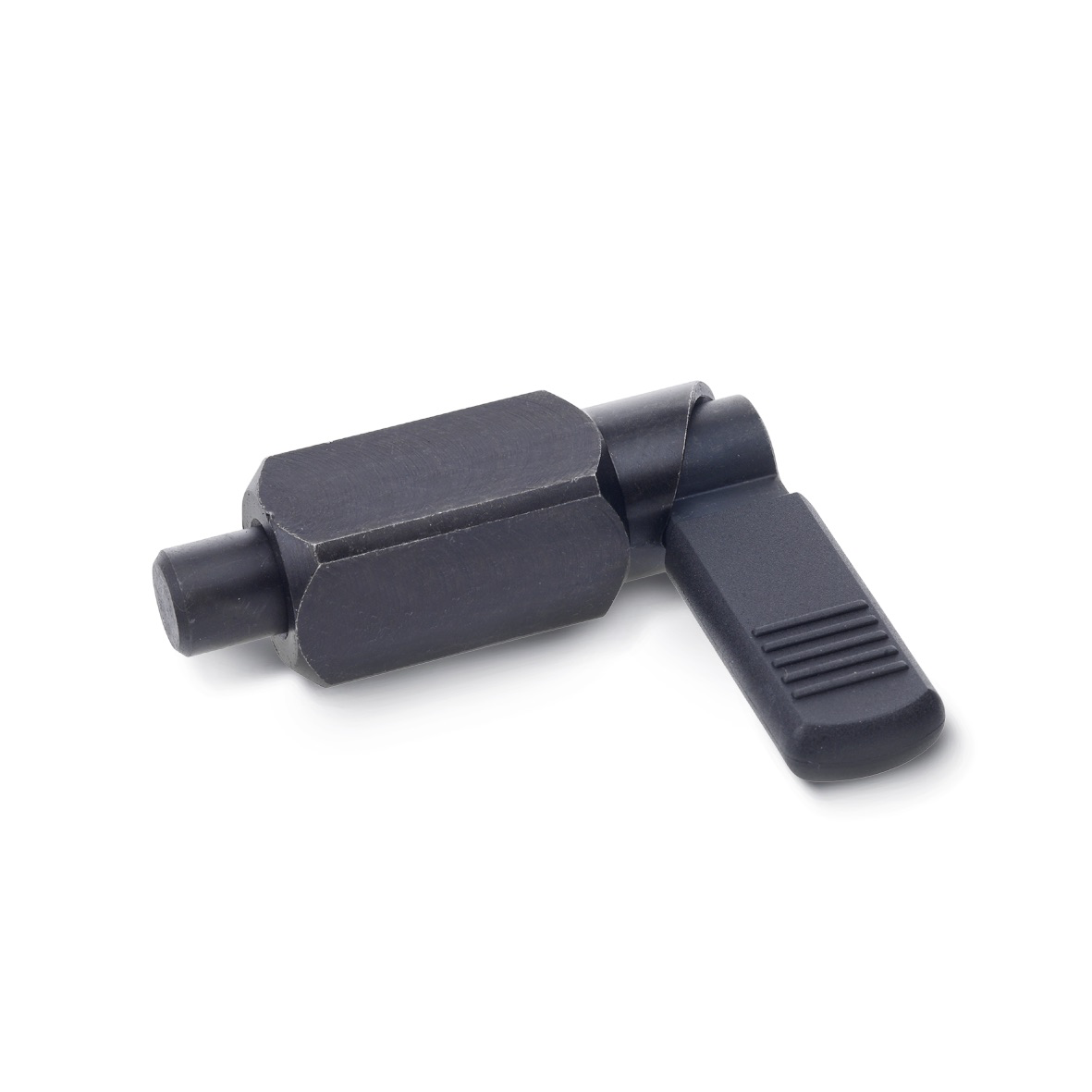

Type B - with plastic cap
Product Description

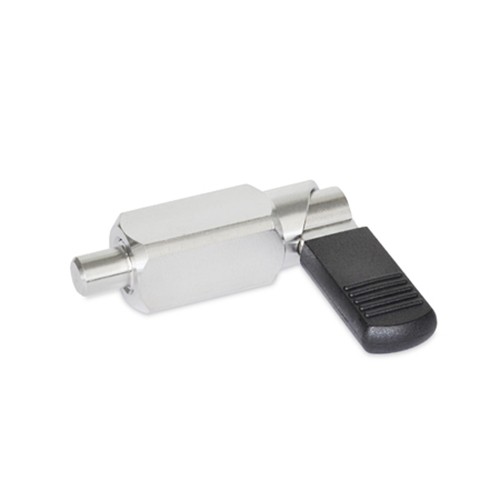

GN612.3 Cam Action Indexing Plunger, for Welding
Cam action indexing plungers GN 612.3 are used in cases where the locking pin must not protrude all the time. By rotating the lock through 180° the locking pin withdraws itself.
A notch is provided in either position to prevent the lock from rotating.
The square body can therefore be welded in any required position. In order to prevent a change in the spring load by the transferred heat we recommend spot welding the plunger body.
Specification
Steel ST. Guide - Blackened, weldable. Plunger Pin - Nitrided.
Spring - Stainless Steel NI, AISI 301
Plastic cover - Polyamide PA, black, matt
Also available in Stainless Steel
CAD Viewer
Technical Data
